Loxone Nano Motor Controller Tree

د.إ509.70

20 people are viewing this right now
6 products sold in last 15 hours
Selling fast! Over 20 people have this in their carts

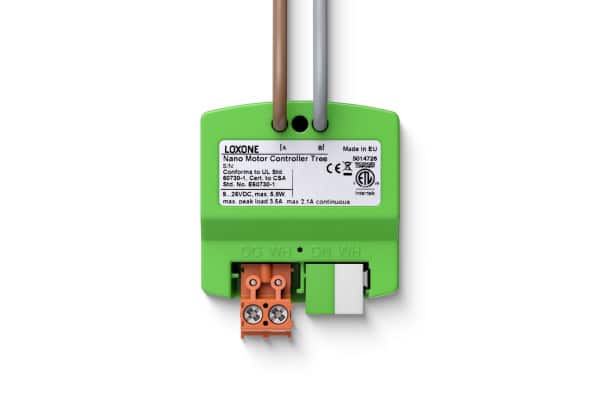

The Nano Motor Controller Tree is a compact flush-mounted module for DC loads, which are controlled via Loxone Tree technology. The configurable outputs can be used to control the speed of DC motors or dim LED lights. You can use the Nano Motor Controller Tree in three different operating modes: Bidirectional motor, unidirectional motor and PWM dimming. In addition, the module has current flow detection and overcurrent detection.

SKU: 100473 Categories: ,

3 Operating Modes
– Bidirectional Motor (1 Output, Polarity Reversal)
– Unidirectional Motor (2 Outputs)
– PWM Dimmer (1 Output)
Max. Total load for outputs
– Bi- & Unidirectional: 2.1A continuous; 3.5A peak (<30s)
– Dimmer: 2.1A
Speed controlled for bi- & unidirectional
Operating voltage 9…26VDC
PWM Frequency:
– Bi- & Unidirectional: 1 … 10kHz
– PWM Dimmer: 400Hz
Current Flow Detection: 100 … 3500mA
Overcurrent Detection: 100 … 3500mA
Compact Dimensions: 40x39x20.5mm
Integrated 150mm long connection cable
Commissioned in record time thanks to Loxone Tree technology

Brand

Loxone
