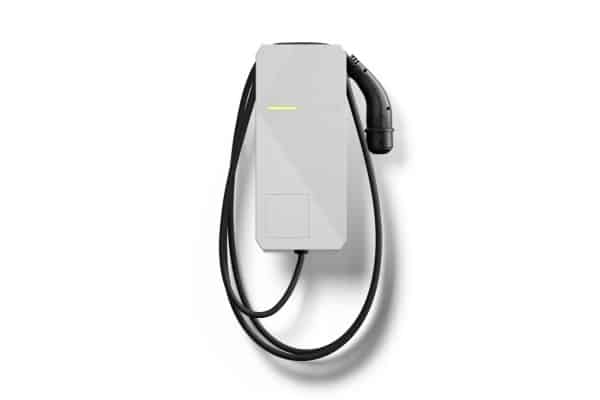

Loxone Wallbox 7.4kW 32A Tree

• Free charging – never give away surplus PV again, charging possible from just 1.38 kW
• Electricity exchange included – even without PV, charging when electricity is cheap, e.g. with variable electricity tariffs
• Easy operation & monitoring – with the Touch Pure Flex or via the app
• Fleet-compatible – protection of the line and the building, thanks to correct power distribution by the Wallbox Manager
• Secure – know who is charging through NFC extension, for billing or to activate the charging process
• Customizable – adapts to your needs; optional Touch Extension, meter & up to 5 customizable charging modes
• Plug & Play – through simple integration via Tree

Technical Data:

• 1.38kW – 7.4kW charging power
• 9 units top-hat rail in the housing
• Integrated RDC-MD DC 6mA (IEC 62955)
• 5m charging cable incl. (Type 2, IEC 62196)
• Modbus interface for 1 device (e.g. MID meter)
• Communicates via Tree
• Installation: stationary, surface mounting, vertical on wall or charging pole
• IP44
