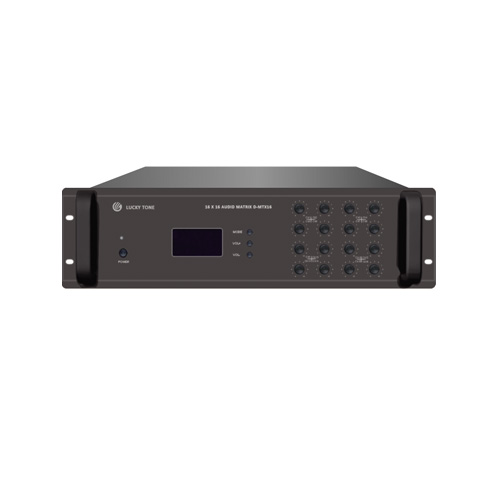

Lucky Tone D-MTX16 16 x 16 Audio Matrix
The Lucky Tone D-MTX16 is a versatile 16 x 16 audio matrix designed for professional audio management. Key features include 16 input and 16 output channels, allowing for flexible routing and distribution of audio signals. It supports high-quality audio processing with customizable DSP settings, including EQ, compression, and delay. The device offers intuitive control via a user-friendly interface and remote management through network connectivity. Unique selling points include its robust build, reliability for complex audio environments, and seamless integration with other audio systems. Ideal for venues requiring precise audio control, the D-MTX16 enhances sound quality and operational efficiency.
Features:
- A powerful Audio Matrix to multiple sources distribution with scheduled broadcast
- Can be simulated in UI of D-COM and achieve
- central management through RS-485
- 16 audio inputs and 16 audio outputs
- With LCD display for convenient monitoring and controls
- Priority bus for zone paging and emergency alarm
| MODEL | D-MTX16 |
| Input | 16 channels: 1 to F inputs,EMC2 (for emergency paging) |
| Output | 16 channels:(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 outputs) |
| Frequency Response | 60Hz – 16kHz (+/- 3dB) |
| S/N Ratio | N/A |
| THD | N/A |
| Indicators | LCD display, power LED |
| Protection | AC Fuse: 0.5A |
| Power Consumption | 15~20W |
| Power Requirement | 110-120V or 220-240V AC, 50/60 Hz; 24VDC |
| Dimensions | 133(H) x 483(W) x 390(D) mm |
| Built-in Dimensions | 3U rack 19 inch |
| Net Weight | 7.10kg |
| Gross Weight | 8.40kg |
