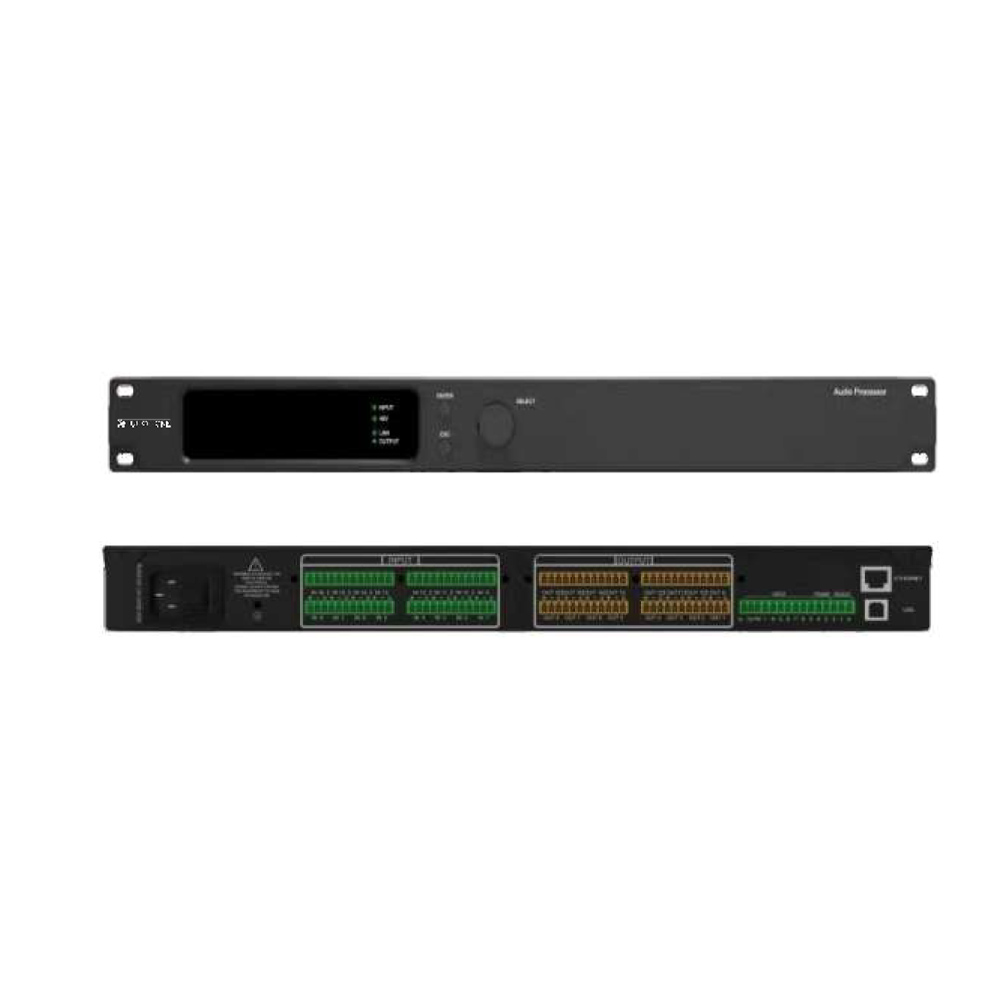

Lucky Tone DSP-1616N 16 In 16 Out DSP Audio Processor
The Lucky Tone DSP-1616N is a versatile 16 In 16 Out DSP Audio Processor designed for professional audio applications. Key features include high-quality 24-bit AD/DA conversion, flexible routing capabilities, and advanced DSP algorithms for precise audio control. It offers comprehensive EQ, crossover, delay, and dynamic processing options, making it ideal for complex sound system configurations. The device supports remote control via Ethernet, allowing for easy integration and management in networked environments. Its user-friendly interface and robust construction ensure reliability and ease of use. The DSP-1616N stands out for its exceptional audio performance, adaptability, and efficient system management, making it a valuable tool for audio professionals seeking precision and flexibility.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
The DSP-1616N audio processor combines Auto Mixer, Matrix Mixer, and Feedback suppressor in one purpose built DSP processor. The DSP-1616N includes 16 mic/line analog inputs, 16 analog outputs to meet the needs of a wide range of audio processing applications such as boardroom, medium/large conference rooms, courtrooms, auditoriums and multi-purpose halls.
Features:
- 16-channel analog input and 16-channel analog output,
- Microphone or Line in switch
- +48V switch per input channel
- AFC in each input
- AUTO-MIX and MATRIC-MIX
- 31 PEQS per input and 10 PEQS per output
- USB free driver connect, RS232/485 connector for
- center control
| MODEL | DSP-1616N |
| Input Channels | 16 balanced. Mic/line level |
| Connectors | 3.81 mm Phoenix Contact, 12-pin |
| Input Impedance | 11.5KΩ |
| Maximum Input Level | 14dBu/Line, -7dBu/Mic |
| Phantom Power | +48VDC, 10mA, selectable per input |
| Output Channels | 16 balanced, line level |
| Output Impedance | 150Ω |
| Frequency Response | 20Hz-20kHz(+-0.5dB)/Line, 20Hz-20kHz(+-1.5dB)/Mic |
| THD+N | -90dB(@12dBu,1kHz,A-wt)/Line, -86dB(@-7dBu,1kHz,A-wt)/Mic |
| SNR | 105dB(@12dBu,1kHz,A-wt)/Line, 95dB(@-7dBu,1kHz,A-wt)/Mic |
| USB | Micro-B type, free driver |
| RS232 | Serial port communication |
| TCPIP | RJ-45, Optional |
| LED Status Indicators | Power, Link, +48V, Input and Output Audio signal |
| Mains Voltage | AC100V—240V 50/60 Hz |
| Dimensions | 44mmx483mmx210mm |
| Net Weight | 2.8kg |
| Operating Temperature | -20℃–80℃ |
| Cooling System | Active, Fan inside |
| Signal Processor | Signal Processor 32-bit fixed/floating-point DSP 300MHz |
| Audio Latency | Audio Latency < 1ms |
| A/D and D/A | A/D and D/A Converters 24-bit |
| Sample Rate | 48KHz |
