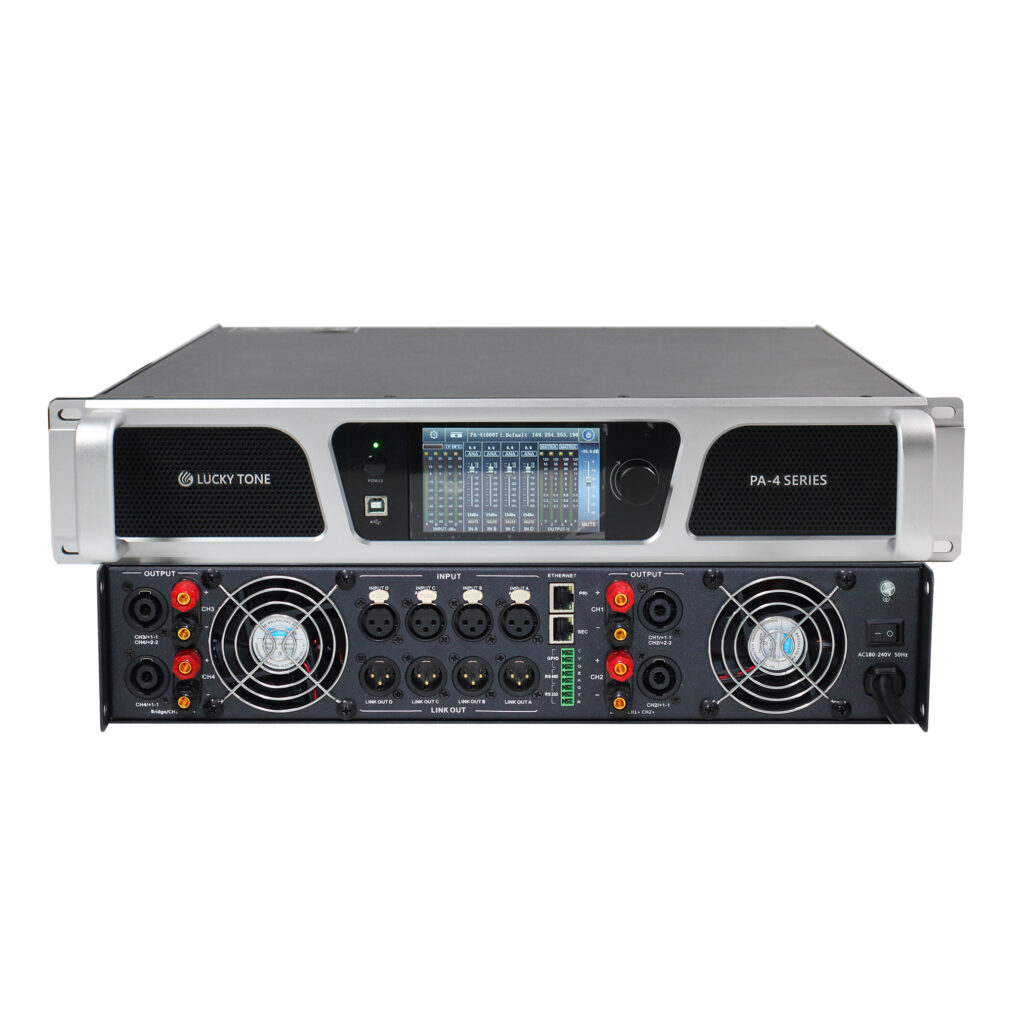

Lucky Tone PA-4800TD V2 Amplifier with DANTE AND DSP

PA Series is a multifunctional network DSP digital power amplifier, which can remotely monitor the status of the power amplifier in real time, and it can set the compressor, limiter, noise gate, parametric equalization, matrix routing, delay as well as other DSP functions in real time. A simple software interface provides customers with simple and convenient settings and operating experience. Besides, the multiple connection methods can achieve good configurability and scalability, which is suitable for various environments.

Features

1. Optional for Dante network audio

2. With network TCP/IP control, and it can realize the management of multiple devices

3. Power on or off remotely

4. Use 4.3 inch IPS capacitive touch screen

5. With built-in DSP digital processor

6. Support multiple connection method: USB, TCP/IP, RS232, RS485

7. Monitor the working status of the power amplifier remotely in real time

8. The power amplifier can be identified by software on site

9. Switch to bridging or matrix mode freely

10. Three levels of input sensitivity can be adjusted 0dBu/6dBu/12dBu, software or color LCD screen setting

11. With standard Fir function, support 4×2048 Taps

12. Support constant voltage and constant resistance: 100V, 70V, 8 ohms, 4 ohms

13. Software control, it can control media matrix and professional processor at the same time

14. Wide voltage operation 180-264VAC

Ordering code

PA-41500TD

4*1500W@8Ω,4*2000W@4Ω,100V (4*1250W); 70V(4*600W); Amplifier with DANTE AND DSP

PA-41500T

4*1500W@8Ω,4*2000W@4Ω,100V (4*1250W); 70V(4*600W); Amplifier with DSP

PA-41000TD

4*1000W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DANTE AND DSP

PA-41000T

4*1000W@8Ω,4*1600W@4Ω, 100V (2*1250W); 70V(4*600W); Amplifier with DSP

PA-4800TD

4*800W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DANTE AND DSP

PA-4800T

4*800W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DSP
