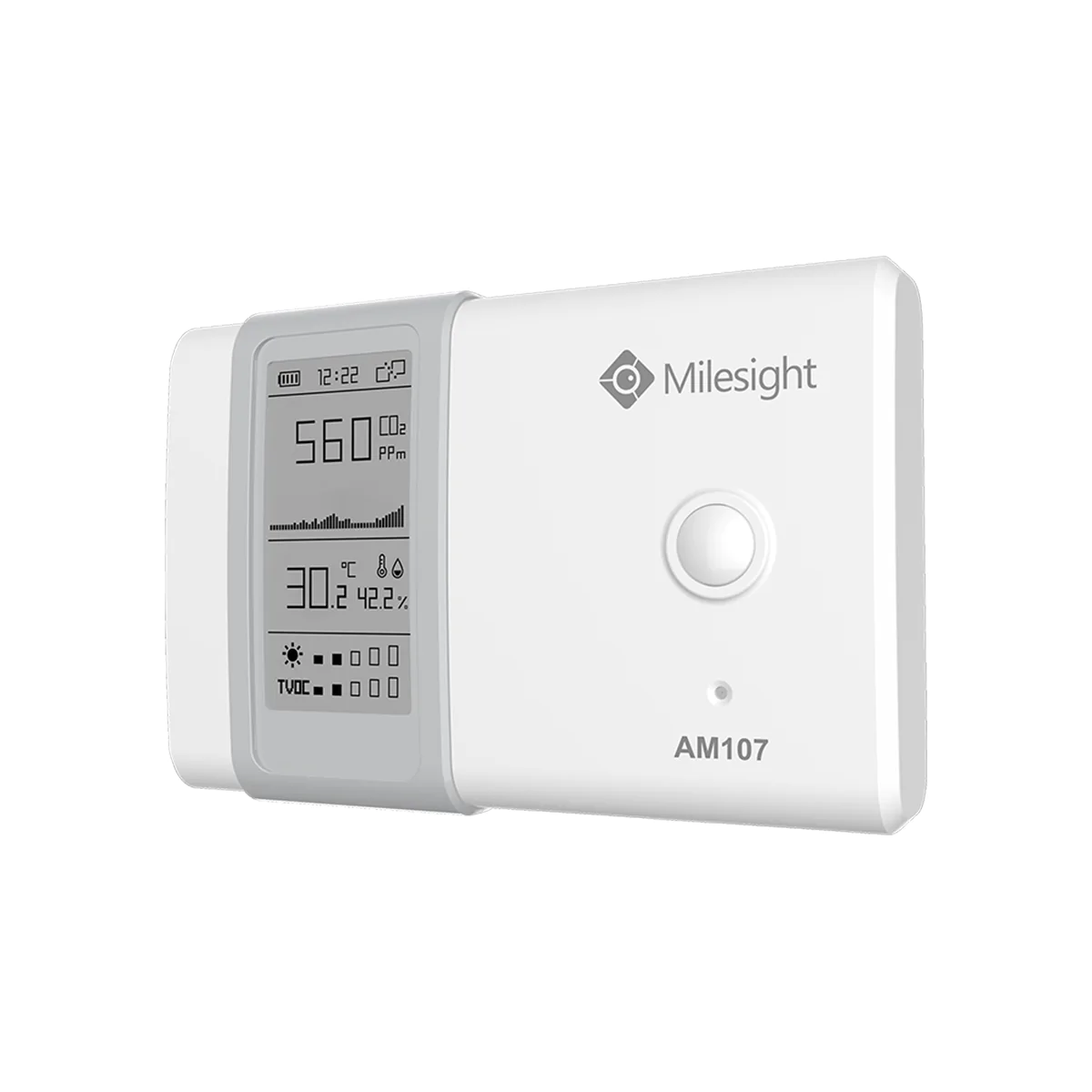

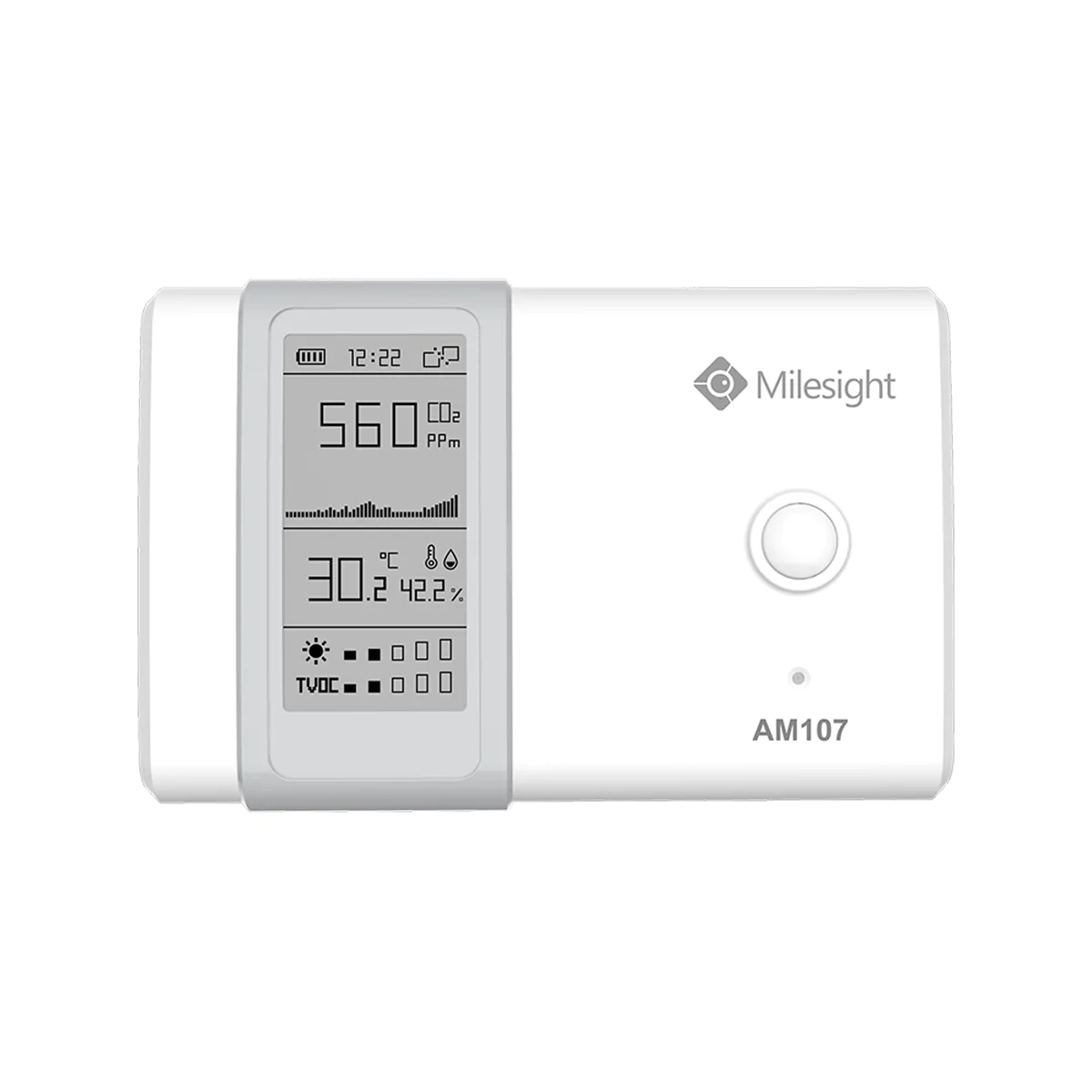

Milesight AM-107 Indoor Ambience Monitoring Sensor

AM107 is a compact indoor ambience monitoring
sensor for measurement of temperature, humidity, light, CO2
concentration, TVOC, barometric pressure and motion. These
data will be shown on the E-ink screen in real-time, which allow
to quantify the indoor environment and comfort.

AM107 is widely used for offices, stores, classrooms, hospitals, etc.

Apart from screen display, sensor data is also transmitted using
LoRaWAN® technology. With this low power consumption
technology, AM107 can work for one year with 2 replaceable AA batteries.

Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all
sensor data remotely and visually.

 Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, etc.
 Visual display via E-ink screen
 Standard AA batteries
 One year work without replacingbatteries
 Equipped with NFC and type-C port for easy configuration
 Compliant with standardLoRaWAN®gateways and network servers
 Quick and easy management with Milesight IoT Cloud solution

Model AM107
Wireless Transmission Technology LoRaWAN®
Frequency EU868
1&2&3&4Tx Power 16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A

Sensors

Temperature:
Sensor Type MEMS
Range -20°C to + 70°C
Accuracy 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution 0.1°C

Humidity
Sensor Type MEMS
Range 0% to 100% RH
Accuracy 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
Resolution 0.5% RH

PIR
Detection Area 94 ° Horizontal, 82 ° Vertical
Detection Distance 5 m
Output Range 0-65535

Light
Range 60000 lux (Visible + IR, IR)
Accuracy ±30%

Carbon Dioxide (CO2)
Sensor Type — Nondispersive Infrared (NDIR)
Range — 400 – 5000 ppmAccuracy
(0°C to +50°C) — ± (30 ppm + 3 % of reading)
Resolution — 1 ppm

TVOC
Sensor Type — MEMS
Range — 0 – 60000 ppb
Accuracy — ±15 %Resolution — 1 ppb
Long-term Stability — 1.3 % accuracy drift per year

Barometric Pressure
Sensor Type — MEMS
Range — 300 – 1100 hPa (-40°C- 85°C)
Accuracy — ±1 hPa
Resolution — 0.1 hPa

Display & Configuration
Display 2.13-inch Black & White E-Ink Screen

Configuration
1. Mobile App via NFC
2. PC software via NFC or USB Type-C port

Physical Characteristics
Power Supply 2 × 1.5V AA Alkaline Batteries or Type-C Port
Operating Temperature 0°C to +45°C
Relative Humidity 0% to 100% (non-condensing)
Ingress Protection IP30
Dimension 105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in)
