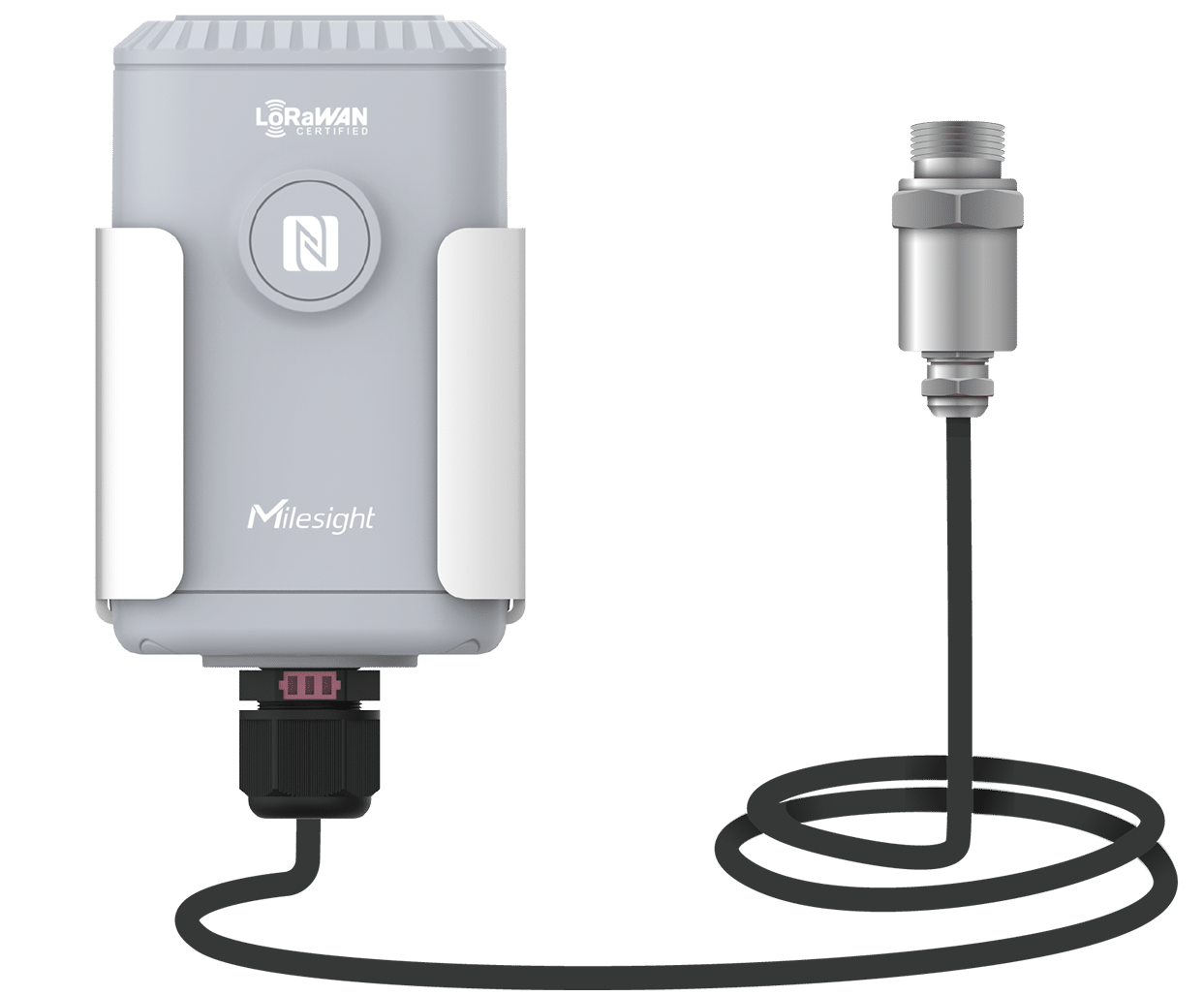

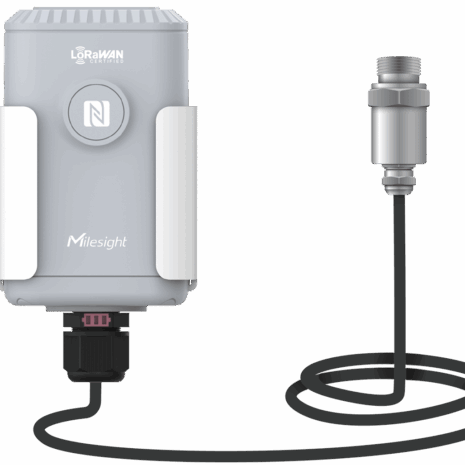

Milesight EM500-PP Pipe Pressure Sensor

EM500-PP is designed for measuring pipe pressure in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-PP can work up to 10 years with 19000 mAh battery.

Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. EM500-PP is widely used for applications like smart buildings, pipeline and tank systems monitoring, etc.

Features
 High precision and corrosion resistance
 Ultra-wide-distance transmission up to line of sight of 10km
 IP67 waterproof enclosure for harsh environment applications
 Built-in 19000 mAh replaceable battery and work for 10 years
without replacement
 Equipped with NFC for easy configuration
 Compliant with standard LoRaWAN® gateways and network
servers
 Quick and easy management with Milesight IoT Cloud solution

Applications

 Pipes and tanks pressure monitoring
 Oil & Gas monitoring
 Water leak detection
 Pump monitoring

Specifications:

Wireless Transmission
– Technology: LoRaWAN®
– Frequency: EU868
– Tx Power: 16dBm(868)
– Sensitivity: -137dBm @300bps
– Mode: OTAA/ABP Class A

Measurement
– Pressure Type: Gauge Pressure
– Range: 0 – 1600 kPa (16 Bar)
– Accuracy: ± 0.5% FS
– Resolution: 1 kPa (0.01 Bar)
– Overload: 150% FS
– Long-term Stability: ± 0.3% FS/year

Process Connection G 1/2” Male

Operation
– Power On & Off: NFC, power button (Internal)
– Configuration: Mobile APP(via NFC) or PC software(via USB Type-C)

Physical Characteristics:
– Cable Length: 1.5 m
– Power Supply: 19000 mAh Li-SOCL2 battery (ER34615)
– Battery Life*: 4 years (10 min interval, SF12) >10 years (10 min interval, SF7)
– Operating Temperature: -30°C to +70°C
– Relative Humidity: 0% to 100% (non-condensing)
– Ingress Protection: IP67(Transceiver)/IP65(Pipe Pressure Sensor)
– Dimension 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)

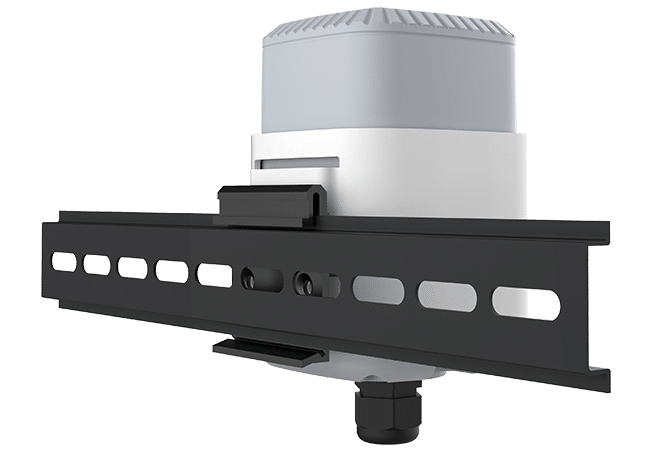

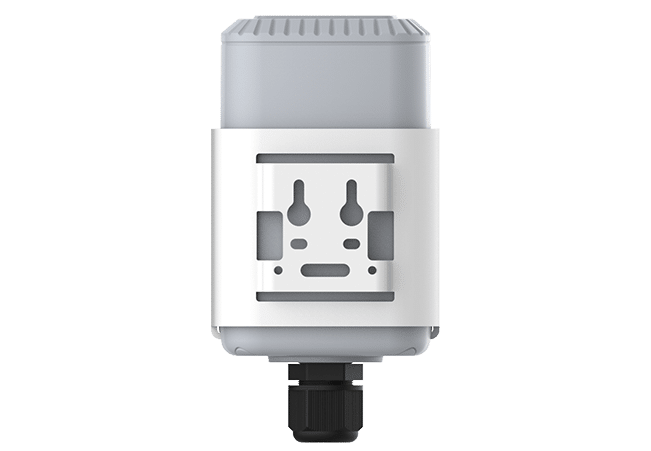

Installation Pole, wall or DIN Rail Mounting
