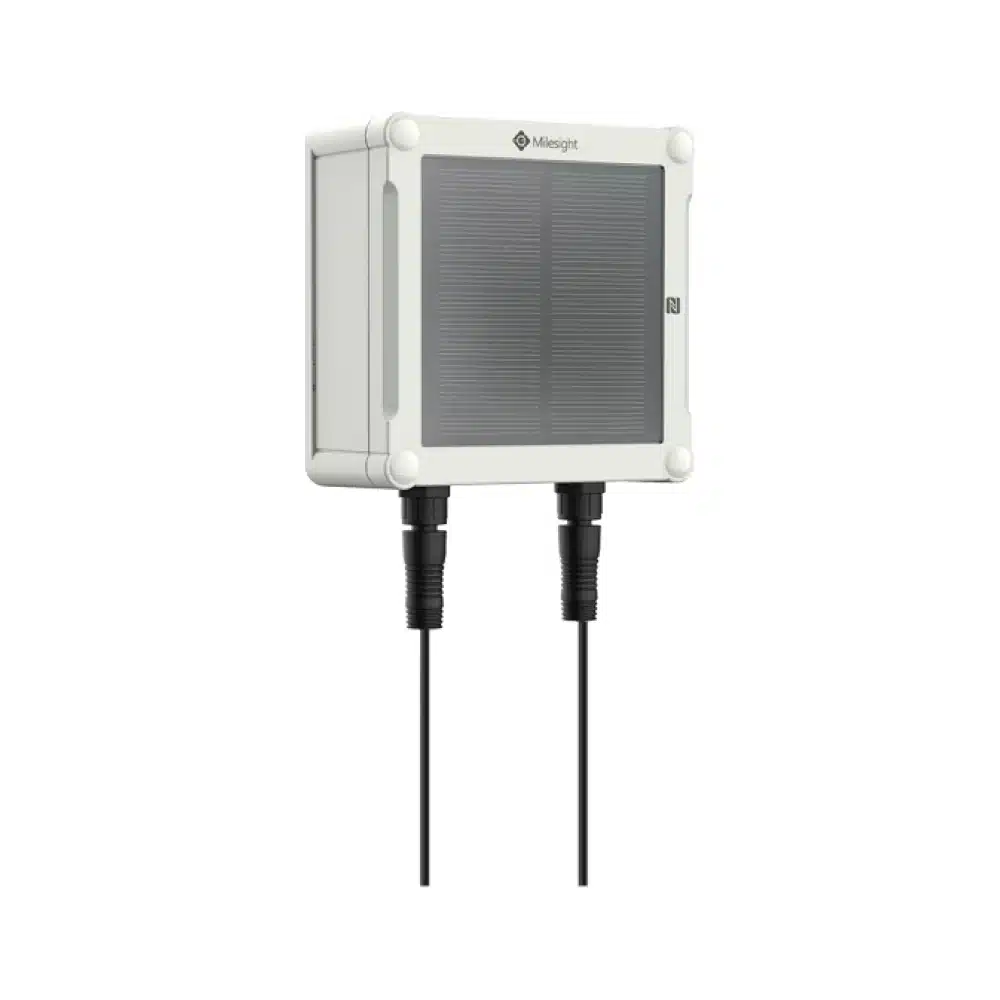

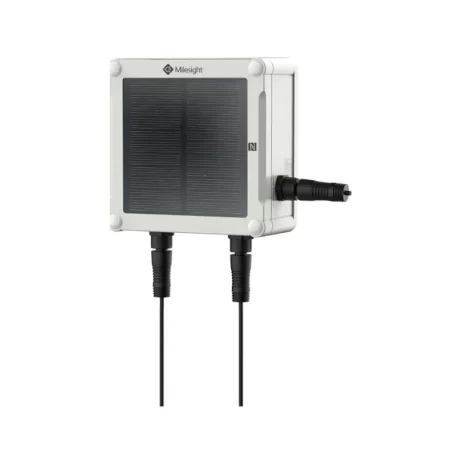

Milesight UC-511 Solenoid Valve Controller

The UC51x Series LoRaWAN® Wireless Solenoid Valve Controller is a device used to remotely control DC self-holding solenoids of the valve.
It contains 2 solenoid valve interfaces and 1 pulse interface, which can be easily controlled locally or remotely.
In addition to ultra-low power LoRaWAN® technology, the UC51x series offers both solar and built-in battery power for uninterrupted operation.
For outdoor applications, it features an IP67-rated enclosure and M12 connectors for protection against water and dust in harsh environments.

Radio standard
LoRaWAN

Interfaces
2x magnetic interfaces
1x pulse interface (supports 2 heart rate monitors)

Mounting
pole-, wall-mounting

General
Dimension: 120.1 x 120.1 x 55.4 mm
Working temperature range: -20°C to + 60°C
Power supply: 5-24 VDC

Special feature
Transmission range up to 11 km
Waterproof design with IP67 housing and M12 connectors
Solar powered and built-in rechargeable battery
Fast wireless configuration via NFC

Approval
CE/RED (Europe)

Housing
IP67
