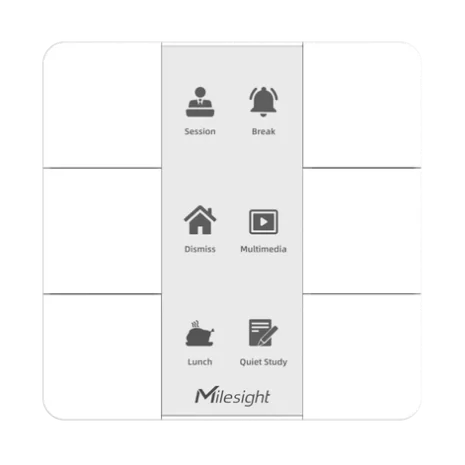

Milesight WS136 Smart Scene Panel D2D Controller

WS136 LoRaWAN® Smart Scene Panel gives a multi button control panel that can simply activate different pre-defined scenes with one-press. Without any additional cable, WS136 can be easily installed anywhere and used to control
devices via LoRaWAN® or Milesight LoRa D2D communication protocol.

Besides, it’s equipped a user-defined E-ink screen to suit different scenes. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, WS136 can be linked to control another Milesight devices without any development.

WS136 can be widely used for wireless control in smart office, smart home and hotel multi-scene controls, etc

Features
 Equipped with a programmable E-ink screen for flexible display
 Up to 6 scenes settable, each scene can consist of multiple devices
 Equipped with NFC for one-touch configuration, supporting card emulation mode
 Support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without
gateway
 Compliant with standard LoRaWAN® gateways and network servers
 Compliant with Milesight IoT Cloud
 Easy installation and multiple installation ways without wiring

Specifications:

Wireless Transmission
– Technology: LoRaWAN®, LoRa D2D
– Frequency: EU868
– Tx Power: 16 dBm (868 MHz)
– Sensitivity: -137dBm
– Mode: OTAA/ABP Class A

Interface

– Scene Button: 6 Buttons
– Button Light: Blue
– Others 1 × Reset Button (Internal) + 1 × LED Indicator

Software
– Configuration: NFC
– Advanced Features: LoRa D2D Controller, Screen Display Customization

Physical Characteristics
– Power Supply: 2 × 590 mAh CR2450 Lithium Coin Cell Batteries
– Battery Life*: Over 3 years (1080 min interval + 20 presses per day)
– Ingress Protection: IP30
– Color & Material: White, PC + ABS (Flame-retardant)
– Operating Temperature: -10°C to +50°C (E-Ink Screen: 0°C – 50°C)
– Relative Humidity: ≤ 90% (Non-condensing)
– Dimensions: 86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)

Installation Desktop, 3M Tape Mounting, 86 Box Mounting
