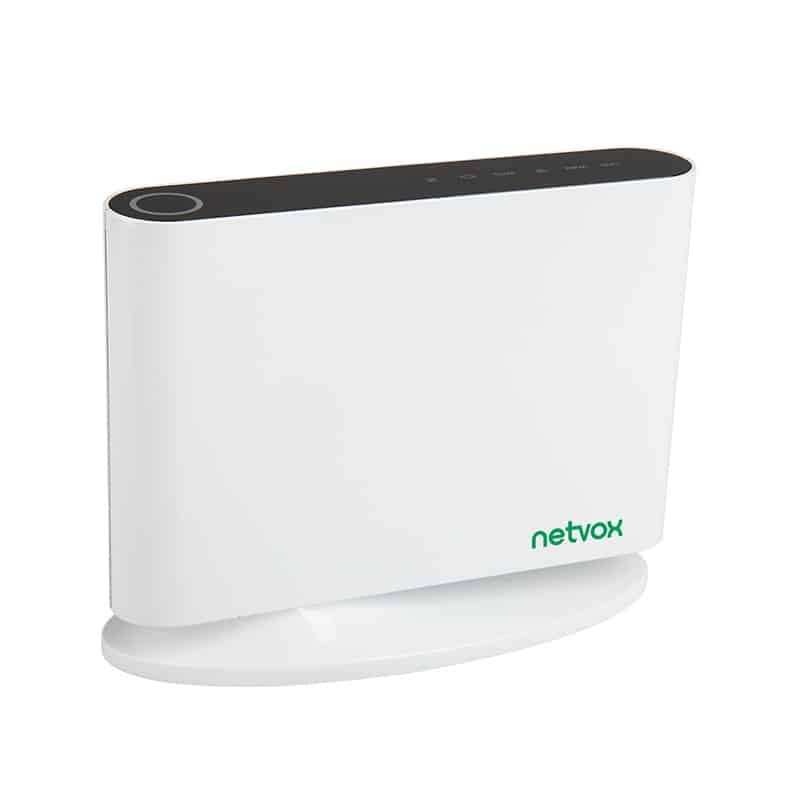

Netvox R206A-Cloud-Based Wireless Smart Home Controller

29 people are viewing this right now
9 products sold in last 5 hours
Selling fast! Over 13 people have this in their carts

R206A is a smart gateway for Samrt and high reliability. As the core of the entire Samrt system, R206A is the first to achieve the perfect combination of cloud technology / WiFi and Netvox LoRa / ZigBee proprietary protocol Internet of Things. R206A acts as a gateway in the LoRa network and can be automatically screened and configured. Third-party software can control the device through it, for example, the Android client side can achieve mode control. At the same time, users can monitor all the changes of devices through the cloud access R206A, and easily realize the real remote control of Samrt, and achieve the functions of energy saving, emission reduction and green environmental protection.

SKU: R206A Categories: ,
  • Support LoRa wireless network
  •  Support Zigbee wireless network
  •  Support for Netvox Cloud
  •  Support USB dongle
  •  Support Gateway mode
  •  Has two RJ-45 data interfaces
  •  The Zigbee communication distance is 210 meters (in an open space)
  •  Wifi communication distance of 250 meters (in an open space)
  •  Simple operation through third-party software control

Electric:

Working Power Input: 100～240V AC
Output: 12V/1.5A DC（Power Adapter)
Power Consumption 2.2W（28mA @230V 50Hz） (typical)

Frequency:

LoRa ZigBee WiFi
Frequency Range 410-525MHz
862-1020MHz
(User can select the desired frequency band)		 2.4～2.4835 GHz 2.4～2.4835 GHz
Communication Channel ( Users can choose according to their needs ) 16
ISM 11th ～26th channel		 11, 13 or 14
Ch1—2412MHz
Ch2—2417MHz
Ch3—2422MHz
～
Ch14—2477MHz
Bandwidth TBD 2MHZ 20/40MHz
Antenna Type Built-in antenna Built-in antenna Built-in PCB antenna
TX Power 19dBm±1dBm
( maximum, can be set according to requirements )		 7dBm （Max.） 18.5dBm
(maximum, can be set according to requirements )
Communication Distance Up to 10 km, the actual transmission distance depends on the environment. 210 meters, the actual transmission distance depends on the environment. 250 meters, the actual transmission distance depends on the environment.
Rx Sensitivity -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)		 -100dBm -75.5dBm
Data Transfer Rate 0.3～50kbps ( can be set according to requirements ) 250Kbps >120Mbps
Modulation LoRa/OOK DSSS（O-QPSK） DSSS

Physical:

Dimensions 123.5mm * 155mm * 65mm
Shell Material PC510
Operating Temperature -10℃～50℃
Storage Temperature -20℃～60℃
Working Humidity 0～95%RH
Storage Humidity 0～95%RH
Mounting Method Keep flat
Brand

Netvox
