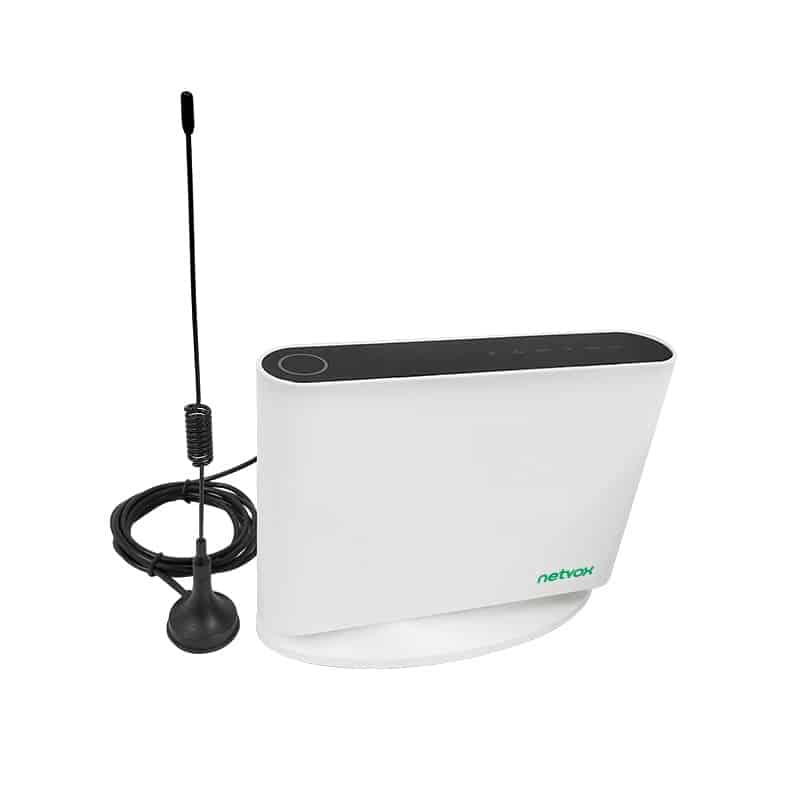

Netvox R206C-Wireless IoT Controller with external antenna

20 people are viewing this right now
4 products sold in last 12 hours
Selling fast! Over 4 people have this in their carts

R206C is a highly reliable wireless smart cloud gateway. As the core of the entire
wireless smart IoT system, R206C achieves the combination of cloud technology,
WiFi, and Netvox LoRa. The Netvox APP (Android and iOS) can control the device.
Users can also monitor all changes in the network by accessing R206C through the
cloud, and easily realize real IoT remote control to achieve energy saving, carbon
reduction, and green environmental protection.

SKU: R206C Categories: ,

• Support LoRa wireless network
• Support Netvox Cloud
• Support Gateway mode
• Two RJ-45
• LoRa communication distance 10km (in an open space)
• Wifi communication distance 250 meters (in an open space)
• External suction cup antenna
• RTC

Electric:

Working Power

Input:100～240V AC
Output:12V/1.5A DC（Power Adapter)

Power Consumption

2.2W（28mA @230V 50Hz） (typical)

Frequency:

            LoRa             WiFi
Frequency Range 410-525MHz
862-1020MHz
(User can select the desired frequency band)		 2.4～2.4835 GHz
Communication Channel Users can choose according to their needs 11, 13 or 14channels(according to specification of each country)
Ch1—2412MHz
Ch2—2417MHz
Ch3—2422MHz
…
Ch14—2477MHz
Bandwidth 125k Hz 20/40MHz
Antenna Type External antenna Built-in PCB antenna
TX Power US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›		 18.5dBm
(maximum, can be set according to requirements )
Communication Distance Up to 10 km, the actual transmission distance depends on the environment. 250 meters, the actual transmission distance depends on the environment.
Rx Sensitivity -136dBm
(LoRa，Spreading Factor=12, Bit Rate=293bps)
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)		 -75.5dBm
Data Transfer Rate 0.3～50kbps (it can be set according to requirements ) >120M bps
Modulation LoRa/FSK DSSS

Physical:

Dimensions 123.5mm*155mm*65mm(without LoRa suction cup antenna)
Shell Material PC510
Operating Temperature -10℃～50℃
Storage Temperature -20℃～60℃
Working Humidity 0～95%RH
Storage Humidity 0～95%RH
Mounting Method Keep flat
Brand

Netvox
