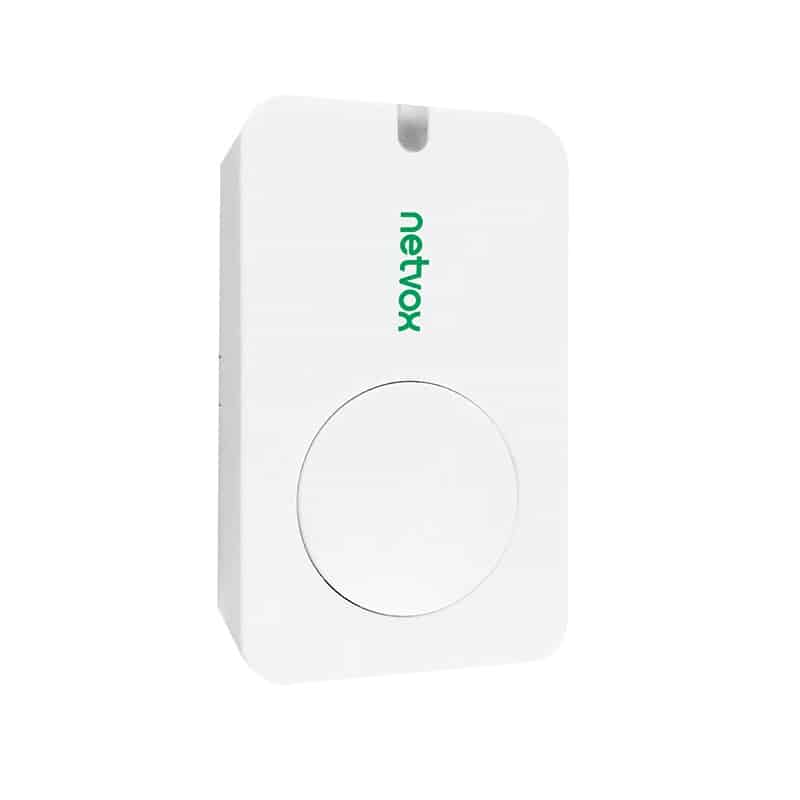

Netvox R311FA – Wireless Activity Detection Sensor

28 people are viewing this right now
11 products sold in last 18 hours
Selling fast! Over 9 people have this in their carts

It can detect the sudden movement or vibration of the device and send an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.

It can detect the sudden movement or vibration of the device and send an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.

• Wireless range of 10 km *1
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Battery Life*2: ⁻ 5 years  (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm,   LoRa spreading factor SF = 10)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

*1. Actual range may vary depending on environment.

*2. Battery life is determined by sensor reporting frequency and other variables

Electric:

Input Power 2pcs 3.0V CR2450 button battery
Working Voltage DC 2.4V~3.0V
Standby Current 40uA /3.0V
Transmitting Current (max) 120mA / 3.0V
Receiving Current (max) 11mA / 3.0V
Battery Voltage Measurement Accuracy ±0.1V

Frequency:

TX Power 19dBm±1dBm
Rx Sensitivity -136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Build-in antenna
Communication Range 10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate 0.3kbps~50kbps
Spread Technique LoRa/FSK
Available Frequency EU863-870,US902-928,AU915-928,
KR920-923,AS923,CN470-510
Configured before shipment

Physical:

Main Body Dimension 57mm x 35mm x 14mm
Weight 48.9 g
Operating Temperature -20℃ ~ 55℃
Environment Humidity Range <90% RH  (No condensation)
Storage Temperature -40℃ ~ 85℃
Brand

Netvox
