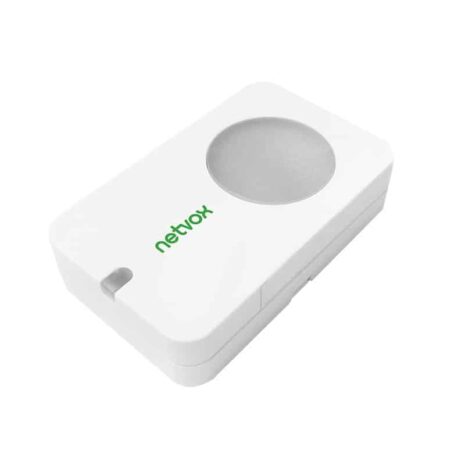

Netvox R311G -Wireless Light Sensor

29 people are viewing this right now
15 products sold in last 8 hours
Selling fast! Over 19 people have this in their carts

R311G built-in photosensitive sensor, can be used for external ambient light intensity detection.R311G is the environmental illuminance automatic detector and the reporter which can send out the environmental illumination report and is a low-power, long range, wireless sensor that can accurately detect environmental illuminance indoor.

SKU: R311G Categories: , ,

R311G built-in photosensitive sensor, can be used for external ambient light intensity detection.R311G is the environmental illuminance automatic detector and the reporter which can send out the environmental illumination report and is a low-power, long range, wireless sensor that can accurately detect environmental illuminance indoor.

•LoRaWAN™ Class A compatible
•2*3.0V CR2450 button battery power supply
•illuminance detection
•Apply SX1276 wireless communication module
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved

Electric:

Power Supply

2 sections 3.0V CR2450 button batteries

Operation Voltage

DC 2.4V to 3.0V

Standby Current

12uA/3.0V

Transmitting Current (max)

120mA / 3.0V

Receiving Current (max)

11mA/ 3.0V

Battery Measurement Accuracy

± 0.1V

Illuminance Detecting Range

1～3000 lux

Illumination Accuracy

<15%

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension 57mm x 35mm x 15.2mm
Weight 32.3g
Operating Temperature -20℃ ~ 55℃
Storage Temperature Range -40°C ~ 85°C
Environment Humidity Range <90%RH
Brand

Netvox
