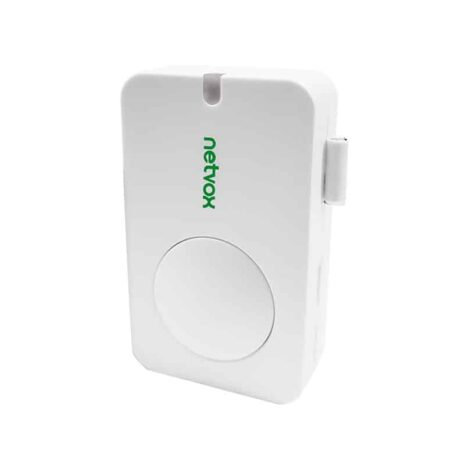

Netvox R313FA1-Wireless 3-axis Accelerometer Sensor

د.إ265

26 people are viewing this right now
10 products sold in last 16 hours
Selling fast! Over 12 people have this in their carts

When the device moves or shakes beyond the set threshold, it immediately reports the current
acceleration and velocity of the X, Y, and Z axes.

SKU: R313FA1 Categories: , ,

When the device moves or shakes beyond the set threshold, it immediately reports the current acceleration and velocity of the X, Y, and Z axes.

• Adopt SX1276 wireless communication module
• 2 x 3.0V CR2450 button batteries
• 3-axis Acceleration and Velocity Detection
• Compatible with LoRaWAN™ Class A
• Frequency Hopping Spread Spectrum (FHSS)
• Configuration parameters can be configured through a third-party software platform
• Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
• Low power consumption and long battery life Improved

Electric:

Power Supply

2 x 3.0V CR2450 button batteries

Operation Voltage

DC 2.4V to 3.0V

Standby Current

42µA / 3V

Transmitting Current (max)

120mA / 3.0V

Receiving Current (max)

11mA/ 3.0V

Battery Measurement Accuracy

± 0.1V

Low Voltage Threshold

2.4V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

External antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension 57mm x 38.05mm x 15.2mm
Operating Temperature Range -20°C ~ 55°C
Storage Temperature Range -40°C ~ 85°C
Operating Humidity Range <90%RH (No condensation)



Brand

Netvox
