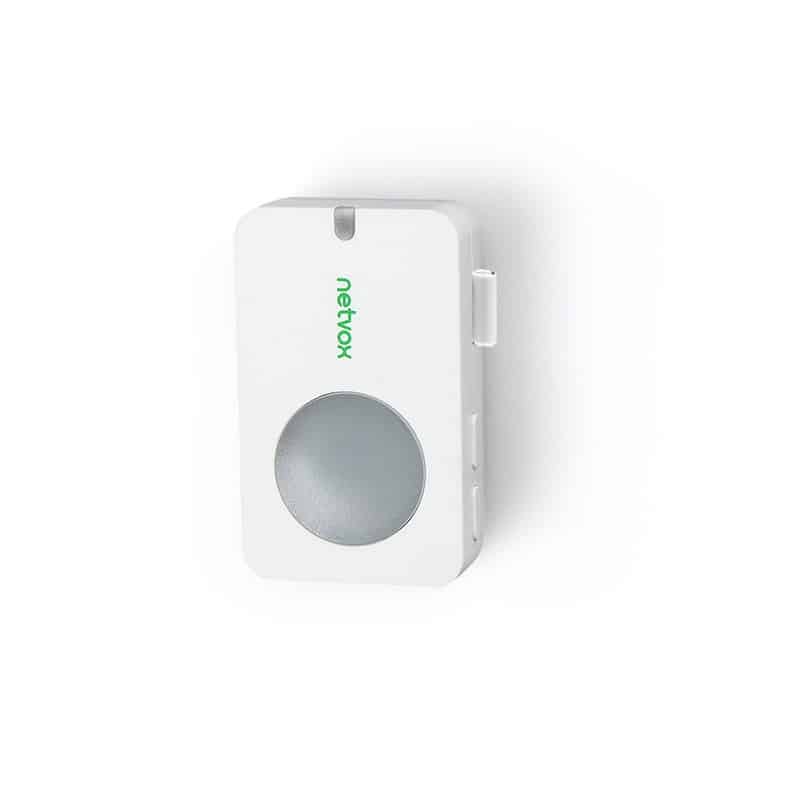

Netvox R313G-Wireless Light Sensor
R313G built-in photosensitive sensor, can be used for external ambient light intensity detection.
R313G is the environmental illuminance automatic detector and the reporter which can send out the environmental illumination report and is a low-power, long range, wireless sensor that can accurately detect environmental illuminance indoor.
R313G built-in photosensitive sensor, can be used for external ambient light intensity detection. R313G is the environmental illuminance automatic detector and the reporter which can send out the environmental illumination report and is a low-power, long range, wireless sensor that can accurately detect environmental illuminance indoor.
•LoRaWAN™ Class A compatible
•2*3.0V CR2450 button battery power supply
•illuminance detection
•Apply SX1276 wireless communication module
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved
Electric:
Power Supply |
2 sections 3.0V CR2450 button batteries |
Operation Voltage |
DC 2.4V to 3.0V |
Standby Current |
12uA/3.0V |
Transmitting Current (max) |
120mA / 3.0V |
Receiving Current (max) |
11mA/ 3.0V |
Battery Measurement Accuracy |
± 0.1V |
Illuminance Detecting Range |
1~3000 lux |
Illumination Accuracy |
<15% |
Frequency:
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
TX Power |
US915 20dbmï¼› |
Receiving Sensitivity |
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps ); |
Antenna Type |
External antenna |
Communication Distance |
Up to 10 km |
Data Transfer Rate |
0.3kbps~50kbps |
Modulation |
LoRa/FSK (Note: You can choose one of them) |
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
Main Body Dimension | 57mm x 38.05mm x 15.2mm |
Weight | 32.3g |
Operating Temperature | -20℃ ~ 55℃ |
Storage Temperature Range | -40°C ~ 85°C |
Environment Humidity Range | <90%RH |
Brand | Netvox |
---|
