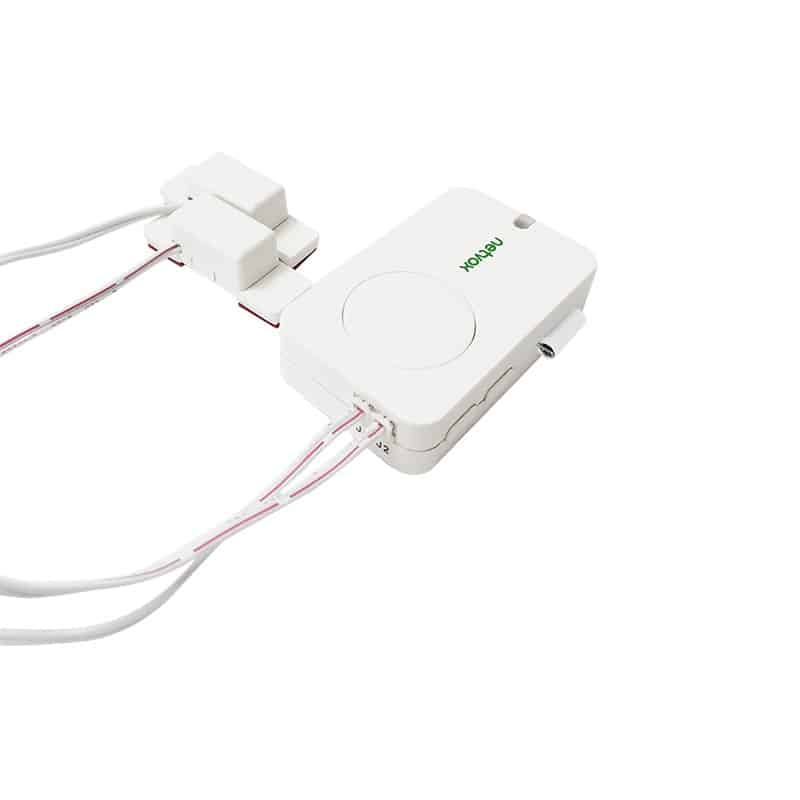

Netvox R313W – Wireless Water Leak Sensor

23 people are viewing this right now
6 products sold in last 18 hours
Selling fast! Over 12 people have this in their carts

NETVOX Wireless Water Leak Sensor (R313W) is a LoRaWAN device compatible with
LoRaWAN protocol (ClassA). When the R313W sensor detects the leak, it will send an alarm
message to the gateway. When the sensor detects no leaks, it will send a message that shows no
leak to the gateway.

SKU: R313W Categories: , ,

NETVOX Wireless Water Leak Sensor (R313W) is a LoRaWAN device compatible with LoRaWAN protocol (ClassA). When the R313W sensor detects the leak, it will send an alarm message to the gateway. When the sensor detects no leaks, it will send a message that shows no leak to the gateway.

•LoRaWAN™ Class A compatible
•2*3.0V CR2450 button battery power supply
•Water leak detection
•Apply SX1276 wireless communication module
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved

Electric:

Power Supply

2 sections 3.0V CR2450 button batteries

Operation Voltage

DC +2. 4 V to 3.0V

Standby Current

12uA/3.0V

Transmitting Current (max)

120mA / 3.0V

Receiving Current (max)

11mA/ 3.0V

Battery Measurement Accuracy

± 0.1V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension 57mm x 38.05mm x 15.2mm
Sensor Dimension 11.89mm x 38.5mm x 13.7mm
Weight 48.9g
Operating Temperature -20℃ ~ 55℃
Storage Temperature Range -40°C ~ 85°C
Environment Humidity Range <90%RH
Brand

Netvox
