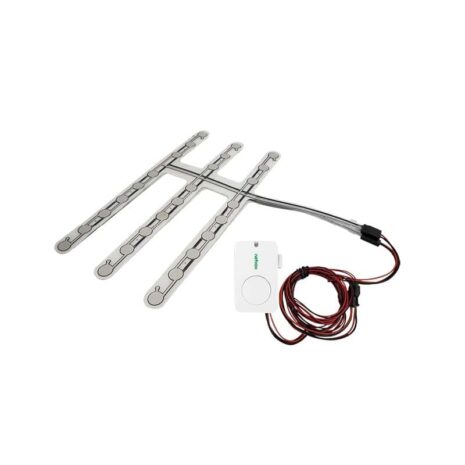

Netvox R313WA-Wireless 2-Gang Seat Occupancy Sensor

24 people are viewing this right now
13 products sold in last 20 hours
Selling fast! Over 10 people have this in their carts

R313WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R313WA will send a message to the gateway. When detecting the seat is empty, the device will send a message that restoring to normal status to the gateway.

SKU: R313WA Categories: , ,

R313WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R313WA will send a message to the gateway. When detecting the seat is empty, the device will send a message that restoring to normal status to the gateway

•LoRaWAN™ Class A compatible
•2*3.0V CR2450 button battery power supply
•Two-gang seat occupancy sensor
•Apply SX1276 wireless communication module
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved

Electric:

Power Supply

2 sections 3.0V CR2450 button batteries

Operation Voltage

DC +2. 4 V to 3.0V

Standby Current

12uA/3.0V

Transmitting Current (max)

120mA / 3.0V

Receiving Current (max)

11mA/ 3.0V

Battery Measurement Accuracy

± 0.1V

Minimum Detecting Pressure Range

200-300g

Cable Length

1000mm (±15mm)

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Unit Size

 57 mm x 38.05 mm x 15.2 mm

Seat Occupancy Sensor Size

 244 mm x 196. 3 mm x 0.65 mm

Weight

 48.9g

Working Temperature

 -20°C ～ 55°C

Ambient Humidity Range

 ＜90% RH（no condense）

Storage Temperature Range

 -40°C ～ 85°C
Brand

Netvox
