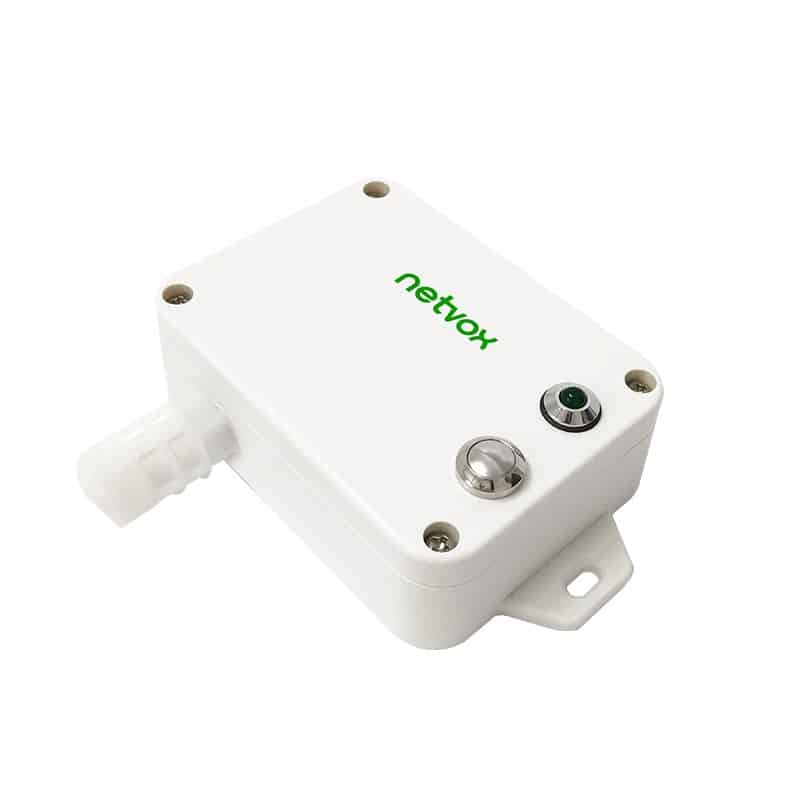

Netvox R718A Temperature and Humidity Sensor for Low Temperature Environment
R718A is capable to measure temperature and humidity at low temperature
environment. R718A can be used in domestic and commercial refrigerators to store and transport food,
medicines, flowers and other perishable goods, on the walls or in logistics refrigerators.
R718A is capable to measure temperature and humidity at low temperature environment. R718A can be used in domestic and commercial refrigerators to store and transport food, medicines, flowers and other perishable goods, on the walls or in logistics refrigerators.
•Apply SX1276 wireless communication module
•2 section of ER14505 battery in parallel (AA SIZE 3.6V / section)
•Temperature and humidity detection
•The base is attached with a magnet that can be attached to a ferromagnetic material object
•Protection class IP65
•LoRaWAN™ Class A compatible
•Frequency Hopping Spread Spectrum (FHSS)
•Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
•Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
•Improved power management for longer battery life
Electric:
| Power Supply | 2×3.6V ER14505 lithium batteries(3.6V2400mah/section) |
| Operating Voltage | 3.1v to 3.65 |
| Standby Current | 20uA |
| Receiving Current (max) | 11mA @3.3V |
| Transmitting Current (max) | 120mA/3.3V |
| Battery Voltage Accuracy | ±0.1V |
| Low Voltage Threshold | 3.2V |
| Temperature Detecting Range | -40℃ to 55℃ |
| Temperature Accuracy | ±0.5℃ @25℃ |
| Humidity Detecting Range | 0%RH～100%RH |
| Humidity Accuracy | ±3%RH @25℃ |
Frequency:
|
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
|
TX Power |
US915 20dbmï¼› |
|
Receiving Sensitivity |
-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； |
|
Antenna Type |
Built-in antenna |
|
Communication Distance |
Up to 10 km |
|
Data Transfer Rate |
LoRa: 0.3kbps～50kbps |
|
Modulation |
LoRa/FSK (Note: You can choose one of them) |
|
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
| Dimension | Main Body:L: 112mm*W: 65mm*H: 28mm Sensor cover size: D: Ø16mm*L: 27mm |
| Environment Temperature Range | -40℃ to 55℃ |
| Storage Temperature Range | -40℃ to 85℃ |
| Environment Humidity Range | <90%RH (No condensation) |
| Weight | 141g |
