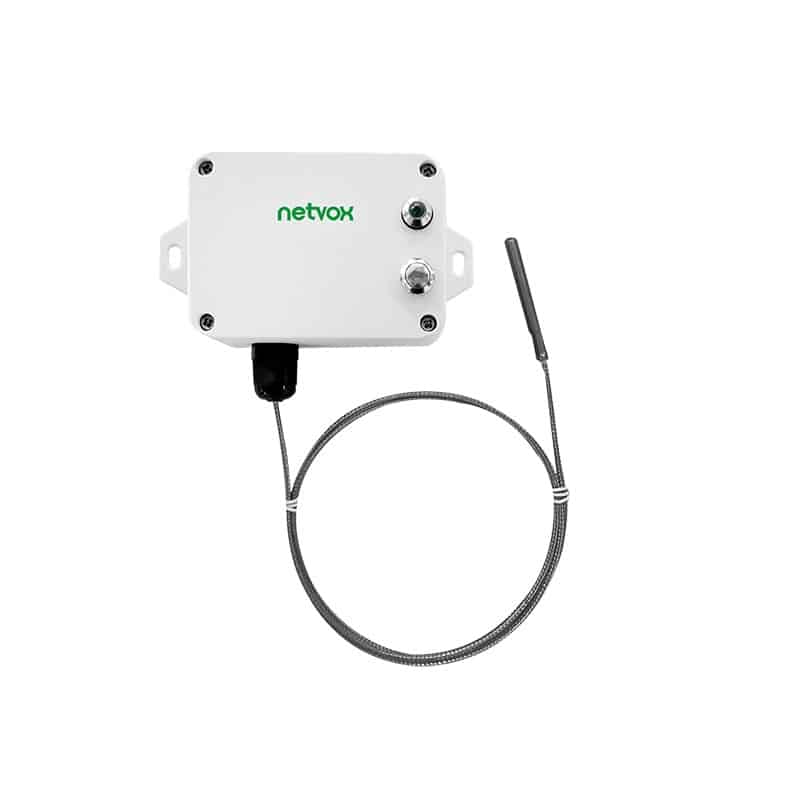

Netvox R718CN – Wireless Thermocouple Sensor – Type N

20 people are viewing this right now
15 products sold in last 14 hours
Selling fast! Over 17 people have this in their carts

This equipment is used to detect temperature of the object and medium which thermocouple is contacted. It uses SX1276 wireless communication module. Type N thermocouple (R718CN), and it will display the collected data in the gateway.

SKU: R718CN Categories: , ,

This equipment is used to detect temperature of the object and medium which thermocouple is contacted. It uses SX1276 wireless communication module. Type N thermocouple (R718CN), and it will display the collected data in the gateway.

• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• Thermocouple detection
• LoRaWAN™ Class A compatible
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries(3.6V2400mah/section)
Operating Voltage 3.1v to 3.65
Standby Current 27uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V
N-type Thermocouple Measurement Range -40°C to 800℃
Thermocouple Wire Length 1m

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension L:112mm*W:88.19mm*H:32mm
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Brand

Netvox
