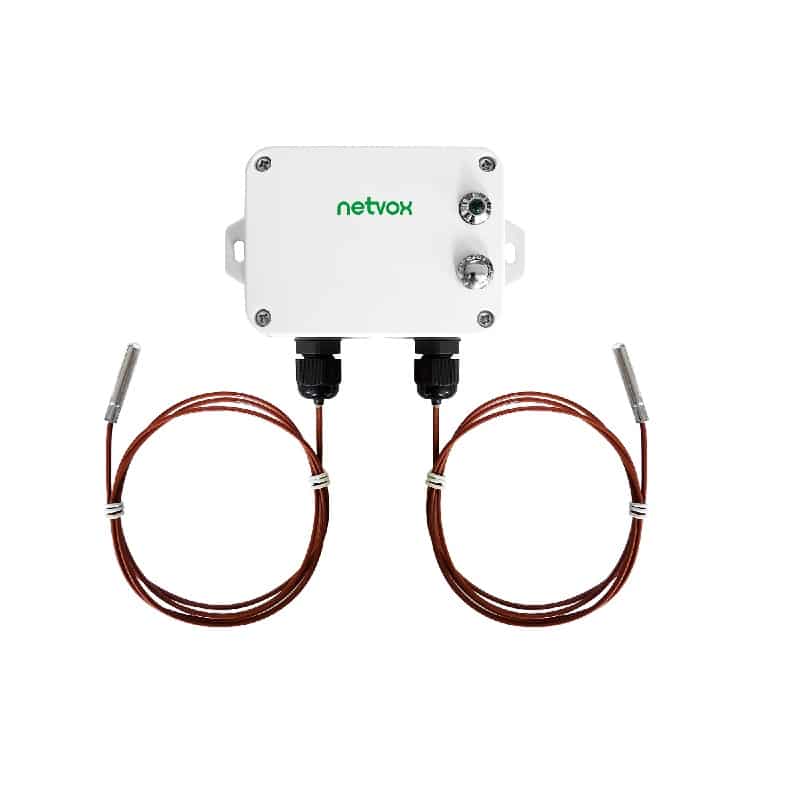

Netvox R718CT2 – Wireless 2-Gang Thermocouple Sensor

26 people are viewing this right now
15 products sold in last 15 hours
Selling fast! Over 14 people have this in their carts

This equipment is used to detect temperature of the object and medium which thermocouple is
contacted.

SKU: R718CT2 Categories: , ,

This equipment is used to detect temperature of the object and medium which thermocouple is contacted.

• Apply SX1276 wireless communication module
• 2 ER14505 batteries AA size in parallel (3.6V / section)
• LoRaWAN™ Class A compatible
• Thermocouple detection
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life



Electric:

Power Supply 2×3.6V ER14505 lithium batteries
Operating Voltage 3.1v to 3.65
Standby Current <36uA
Wakeup Current 7.33mA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V
Temperature Measurement Range -40°C to 125℃
Thermocouple Wire Length 1m

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Host body:112mm*88.19mm*32mm
Operating Temperature Range -20°C ~ 55°C
Storage Temperature Range -40°C ~ 85°C
Operating Humidity Range <90%RH (No condensation)
