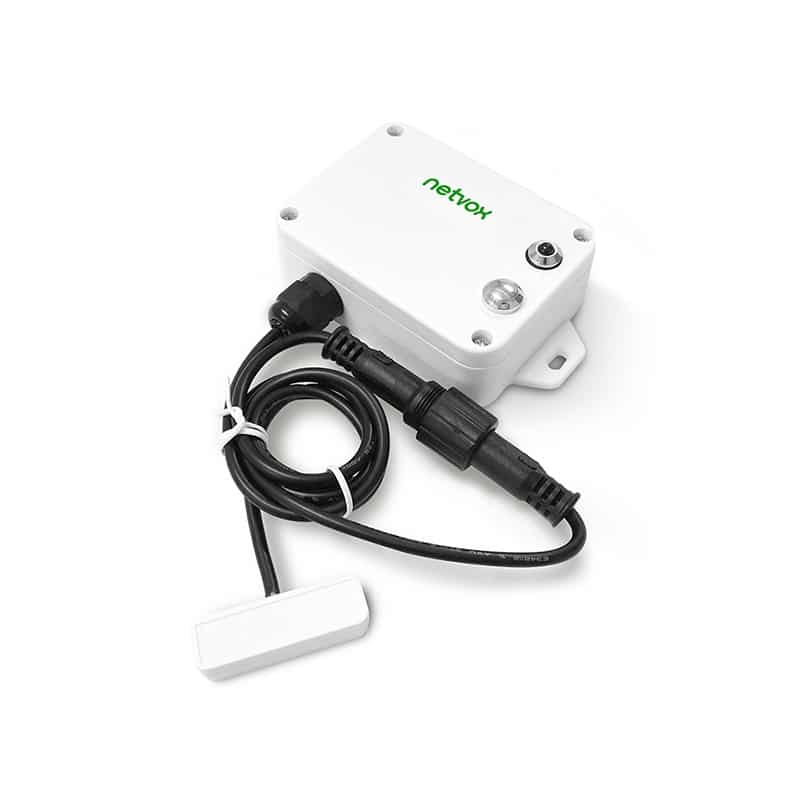

Netvox R718DB- Wireless Vibration Sensor, Spring Type

د.إ410

25 people are viewing this right now
13 products sold in last 18 hours
Selling fast! Over 19 people have this in their carts

When the vibration sensor moves or vibrates, the R718DB can detect the vibration or
movement signal, and transmit the detected data to other devices through the wireless
network.

SKU: R718DB Categories: , ,

When the vibration sensor moves or vibrates, the R718DB can detect the vibration or movement signal, and transmit the detected data to other devices through the wireless network.

• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• LoRaWAN™ Class A compatible
• Vibration detection
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries
Operating Voltage 3.1v to 3.65v
Standby Current 23uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension 112mm*89mm*32mm
Operating Temperature Range -20°C ~ 55°C
Storage Temperature Range -40°C ~ 85°C
Operating Humidity Range <90%RH (No condensation)
Brand

Netvox
