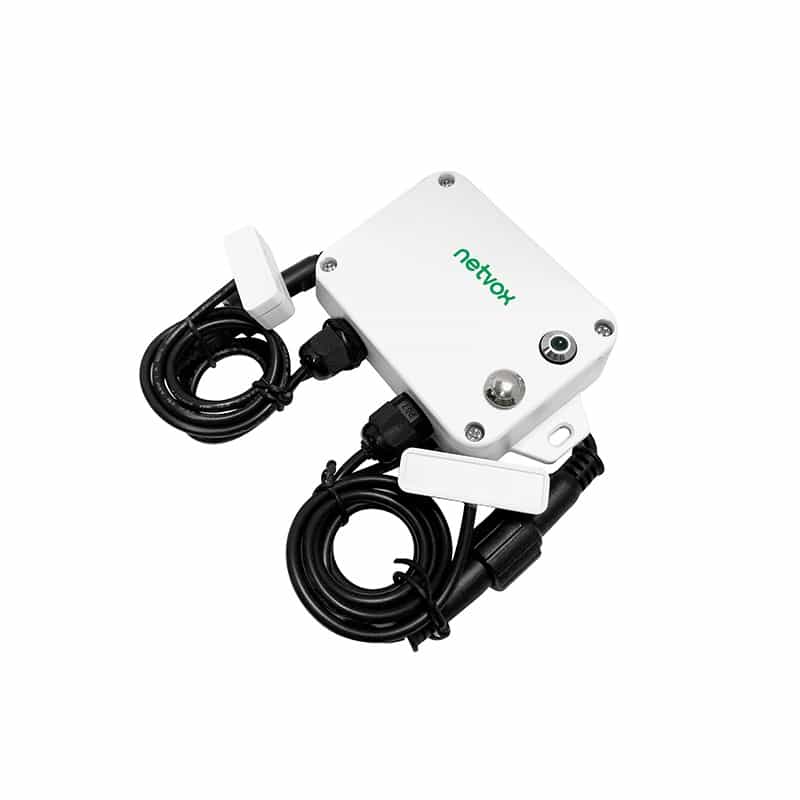

Netvox R718DB2- Wireless 2-Gang Vibration Sensor, Spring Type

د.إ530

25 people are viewing this right now
7 products sold in last 6 hours
Selling fast! Over 12 people have this in their carts

R718DB2 is equipped with two external spring type vibration sensors. When either of the vibration sensors moves or vibrates, R718DB2 can detect vibration or moving signals and send an alert to data center through LoRaWAN™. It is fully compatible with LoRaWAN™ protocol (Class A).

SKU: R718DB2 Categories: , ,
R718DB2 is equipped with two external spring type vibration sensors. When either of the vibration sensors moves or vibrates, R718DB2 can detect vibration or moving signals and send an alert to data center through LoRaWAN™. It is fully compatible with LoRaWAN™ protocol (Class A).
• Wireless range of 10km *1
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X  series carry magnets which can be attached to ferromagnetic materials and objects

*1. Actual range may vary depending on environment.

*2. Battery life is determined by sensor reporting frequency and other variables

Electric:

Input Power

2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section）

Sleeping Mode

23uA

Wake up Mode

6.3mA@3.3V

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Measurement
Accuracy

±0.1V

Low Voltage Threshold

3.2V

Frequency:

TX Power

19dBm±1dBm

Rx Sensitivity

-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

10 km (line-of-sight, the actual transmission distance depends on the environment)

Data Transfer Rate

0.3kbps～50kbps

Spread Technique

LoRa/FSK

Available Frequency

US915       AU915       AS923 EU868       KR920       CN470
Configured before shipment

Physical:

Dimension

Main Part: L: 112mm*W: 65mm*H: 32mm

Weight

150g

Environment Temperature Range

-20℃ ～ 55℃

Environment Humidity Range

<90% RH  (No condensation)

Storage Temperature

-40℃ ～ 85℃
Brand

Netvox
