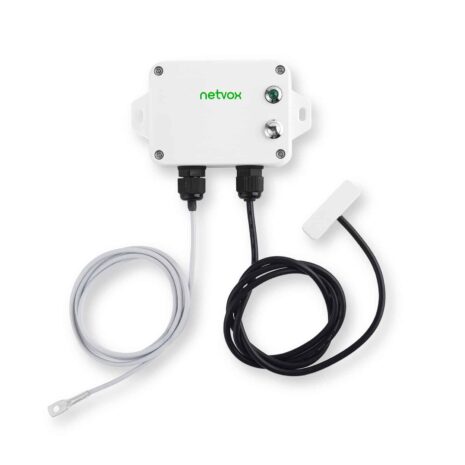

Netvox R718EC-Wireless Accelerometer and Surface Temperature Sensor

22 people are viewing this right now
16 products sold in last 20 hours
Selling fast! Over 2 people have this in their carts

It can detect the movement or vibration of the device and send the signal to the gateway for processing. Otherwise, it is connected with an external NTC thermistor which can detect the surface temperature of the measured object.

SKU: R718EC Categories: , , ,

It can detect the movement or vibration of the device and send the signal to the gateway for processing. Otherwise, it is connected with an external NTC thermistor which can detect the surface temperature of the measured object.

• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• LoRaWAN™ Class A compatible
• Acceleration sensor detection
• Host body IP65/IP67(Optional);External NTC thermistor IP67
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries
Operating Voltage 3.1v to 3.65
Standby Current 80 uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V
NTC Thermistor Measurement Range -40°C to 120℃
NTC Thermistor Accuracy ±3°
3-axis Accelerometer ADC Resolution 13 Bits
3-axis Accelerometer Accuracy ±16g

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension 112mm*89.19mm*32mm
Operating Temperature Range -20°C ~ 55°C
Storage Temperature Range -40°C ~ 85°C
Operating Humidity Range <90%RH (No condensation)



Brand

Netvox
