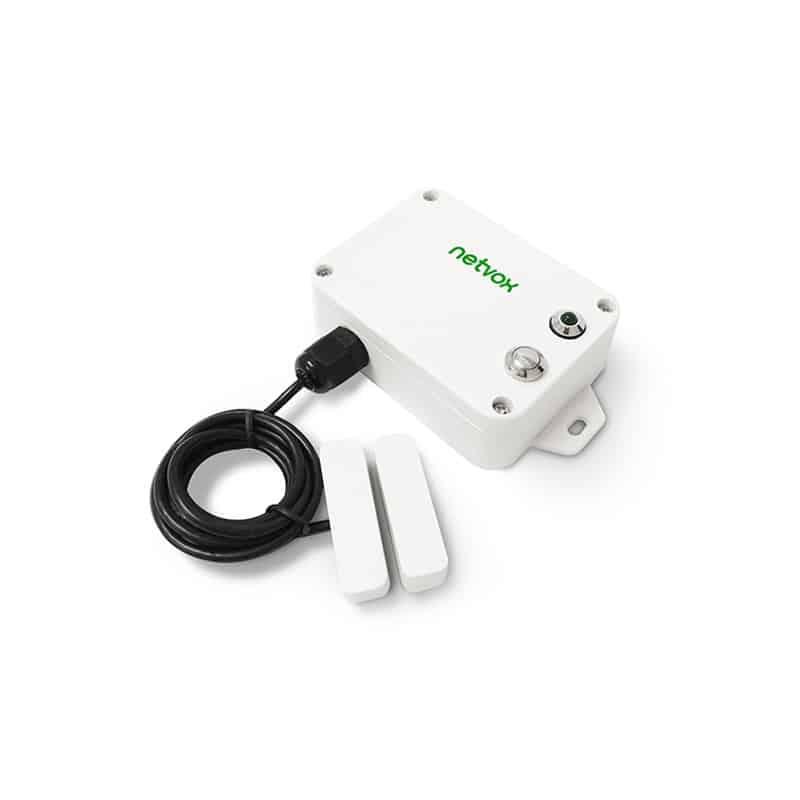

Netvox R718F- Wireless Reed Switch Open/Close Detection Sensor

25 people are viewing this right now
18 products sold in last 15 hours
Selling fast! Over 15 people have this in their carts

The device is equipped with a reed sensor, which can be used to detect the status of the door and
window. Through the built-in wireless module, it can achieve wireless alarm and other functions.
It uses the SX1276 wireless communication module.

SKU: R718F Categories: , ,

The device is equipped with a reed sensor, which can be used to detect the status of the door and window. Through the built-in wireless module, it can achieve wireless alarm and other functions. It uses the SX1276 wireless communication module.

• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• LoRaWAN™ Class A compatible
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries(3.6V2400mah/section)
Operating Voltage 3.1v to 3.65
Standby Current 20uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Main Body:L: 112mm*W: 65mm*H: 28mm
Sensor case:L: 43mm*W: 13mm*H: 12mm
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Weight 141g
Brand

Netvox
