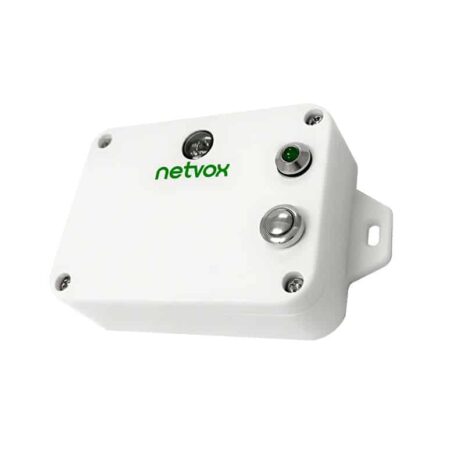

Netvox R718G – Wireless Light Sensor
The device has a built-in light sensor that can be used for ambient light intensity detection. It uses the SX1276 wireless communication module. The R718G detects the ambient light intensity value and adds it to the gateway. The collected data is displayed in other devices
The device has a built-in light sensor that can be used for ambient light intensity detection. It uses the SX1276 wireless communication module. The R718G detects the ambient light intensity value and adds it to the gateway. The collected data is displayed in other devices
- Wireless range of 10km *1
- LoRaWANâ„¢ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RFâ„¢ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718XÂ series carry magnets which can be attached to ferromagnetic materials and objects
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Electric:
Input Power | 2 x 3.6V ER14505 AA lithium batteries (3.6V2400mah/section) |
Sleeping Mode | 18uA |
Wake up Mode | 6.3mA@3.3V |
Receiving Current (max) | 11mA @3.3V |
Transmitting Current (max) | 120mA/3.3V |
Battery Voltage Measurement Accuracy |
±0.1V |
Low Voltage Threshold | 3.2V |
Frequency:
TX Power | 19dBm±1dBm |
Rx Sensitivity | -136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
Antenna Type | Build-in antenna |
Communication Range | 10 km (line-of-sight, the actual transmission distance depends on the environment) |
Data Transfer Rate | 0.3kbps~50kbps |
Spread Technique | LoRa/FSK |
Available Frequency | US915Â Â Â Â Â Â AU915Â Â Â Â Â Â AS923 EU868Â Â Â Â Â Â KR920Â Â Â Â Â Â CN470 Configured before shipment |
Physical:
Dimension | Main Part: L: 112mm*W: 65mm*H: 32mm |
Weight | 150g |
Environment Temperature Range | -20℃ ~ 55℃ |
Environment Humidity Range | <90% RHÂ (No condensation) |
Storage Temperature | -40℃ ~ 85℃ |
Brand | Netvox |
---|
