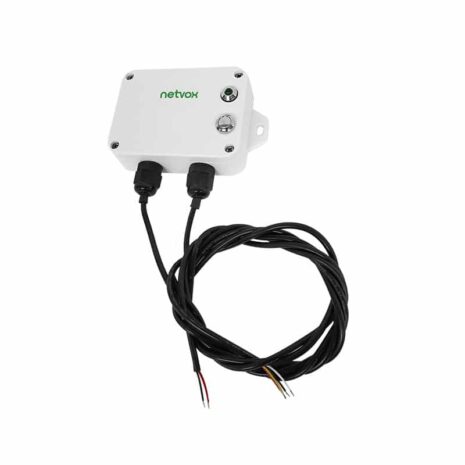

Netvox R718IJK-Wireless Multi-Sensor Interface for 0-24V ADC, Dry Contact and 4-20mA Sensors

د.إ560

28 people are viewing this right now
5 products sold in last 3 hours
Selling fast! Over 13 people have this in their carts

This device is used for detecting 4mA-20mA signal, 0-24V DC ADC samples and dry contact features which employs SX1276 wireless communication module .

R718IJK can detect 4mA-20mA signal, 0-24V DC ADC sampling signal and dry contact input signal, and send the detection signal data to the gateway, and display the collected data in the monitoring platform.

SKU: R718IJK Categories: , , , , , ,
  • Using SX1276 wireless communication module
  • 2 ER14505 batteries AA SIZE (3.6V / section) power supply in parallel
  • Protection grade IP65
  • The base is equipped with a magnet, which can be attracted to iron objects
  • 4mA-20mA signal detection
  • Dry contact
  •    0-24V ADC detection (the red wire is connected to the positive 24V, the black wire is connected to the negative GND , be careful not to be reversed.)

Electric:

Power supply 2 ER14505 lithium batteries
(3.6 V, 2400mAh / section) in parallel
Battery life Battery life of 5 years (condition: ambient temperature 25 ℃, report once every 15min, txpower = 20dBm, LoRa spreading factor SF = 10)
Sleep current 22.7 uA
Wake-up current 6.3mA @ 3.3V
RF receiving current 11 mA @ 3.3V
RF emission current 120mA @ 3 .3 V
Battery measurement  accuracy ± 0.1V

* Specific electrical characteristics will vary depending on the power supply voltage

Frequency:

Frequency range 863MHz-928MHz   470MHz-510MHz
Power output US915   20dbm；
AS923   16dbm；
AU915   20dbm；
CN470   19.15dbm；
EU868   16dbm；
KR920   14dbm；
IN865    20dbm；
Receive sensitivity -136dBm
(LoRa, Spreading Factor = 12, Bit Rate = 293bps);
-121 dBm
( FSK, Frequency deviation = 5kHz, Bit Rate = 1.2kbps)
Antenna type Built-in antenna
Communication distance Up to 10 km
(visible straight – line barrier-free transmission distance, the actual transmission distance depends on the environment )
Data transfer rate 0.3kbps ～ 50k bps
Modulation system mode LoRa / FSK (Note: choose one of them)
Supported LoRaWAN band EU863- 870，US 902-928，AU915-928，KR920-923，
AS923，CN470-510 (Note: the frequency band is optional,
it needs to be configured before delivery)

Physical:

Size L: 112 mm * W: 88.19 mm * H: 32 mm
Body weight Approximately 141 g
Ambient temperature range -20℃ ～ 55℃
Ambient humidity range <90% RH (non-condensing)
Brand

Netvox
