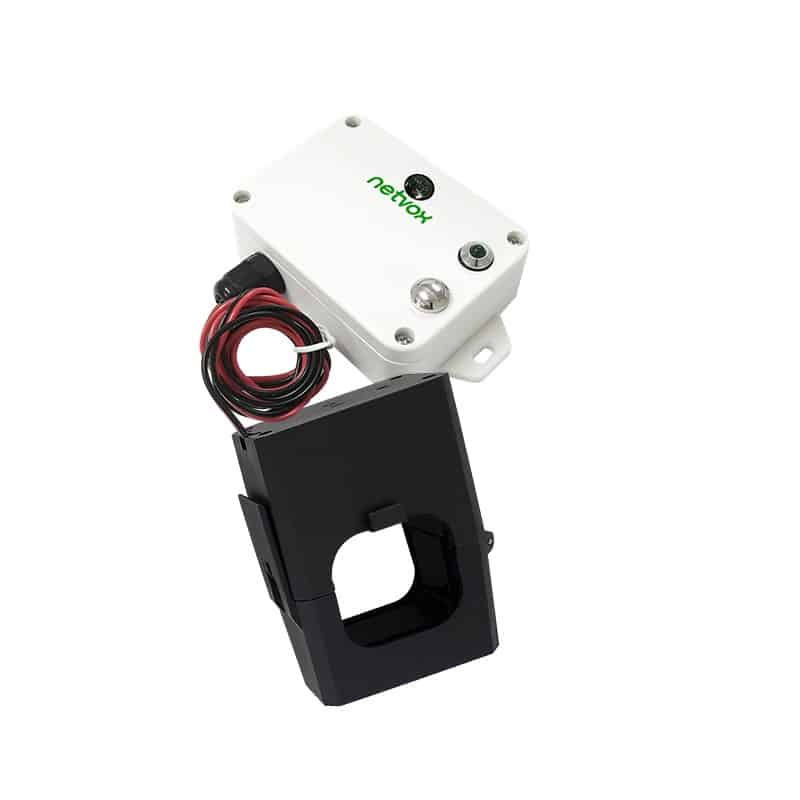

Netvox R718NL163-Wireless Light Sensor and 1-Phase Current Meter with 1x630A Clamp-On CT
The NETVOX Wireless Light Sensor and 1-Phase Current Meter with 1x630A Clamp-On CT is used to detect single-phase electrical input current and ambient light intensity detection.
The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol to display the collected data in the gateway.
The device adopts the split-core current transformer, which can be conveniently connected to the measuring device.
• Apply SX1276 wireless communication module
• 2 section of ER14505 battery (3.6V / section) in parallel
• Protection level: Main body IP53; Clamp-On CT IP30
•The base is attached with a magnet that can be attached to a ferromagnetic material object
• The clamp-on CT allows easier installation to the device you would like to detect the current from
• LoRaWAN Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view
data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life
Electric:
| Power supply |
2 section of ER14505 battery (3.6V / section) in parallel |
|
Battery life |
Battery life are 5 years |
| Stand-by current | 36uA |
| Wake-up current | 7mA |
| RF receiving current | 11 mA @ 3.3V |
| RF emission current | 127 mA @ 3 .3 V |
| Battery measurement accuracy | ± 0.1V |
|
Current measurement error value |
± 1% |
| Current resolution | 1mA |
|
Current measurement accuracy |
5A to 630 A |
*Specific electrical characteristics may vary depending on the power supply voltage
Frequency:
|
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
|
TX Power |
US915 20dbmï¼› |
|
Receiving Sensitivity |
-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； |
|
Antenna Type |
Built-in antenna |
|
Communication Distance |
Up to 10 km |
|
Data Transfer Rate |
LoRa: 0.3kbps～50kbps |
|
Modulation |
LoRa/FSK (Note: You can choose one of them) |
|
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
|
Size |
Main body size: L:112 mm * W:88.19 mm * H:32 mm |
|
Main Body Weight |
Approximately 141 g |
|
Sensor Weight |
About 365.4 g |
|
Sensor External Wiring Length |
Approximately 900mm |
|
Ambient Operating Temperature Range |
-20℃ ～ 55℃ |
|
Ambient Storage Temperature Range |
-40℃ ～ 85℃ |
|
Ambient Humidity Range |
<90% RH (non-condensing) |
|
Fixed Way |
Screw / magnet |
| Brand | Netvox |
|---|
