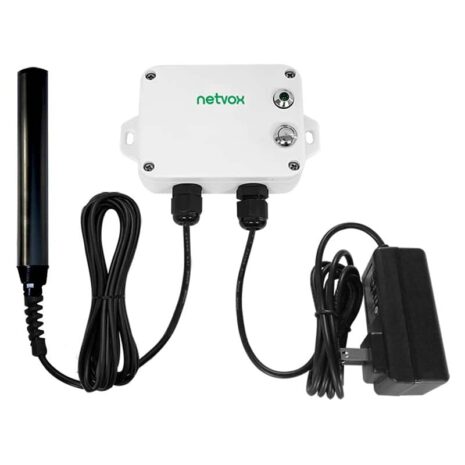

Netvox R718PA10 – Wireless Turbidity Sensor

د.إ5,285

30 people are viewing this right now
8 products sold in last 7 hours
Selling fast! Over 10 people have this in their carts

R718PA10 can detect the turbidity value and temperature of the solution. The body and the turbidity sensor are connected through the RS485 interface, and the detected data is transmitted to other devices through the wireless network for display.

SKU: R718PA10 Categories: , ,

R718PA10 can detect the turbidity value and temperature of the solution. The body and the turbidity sensor are connected through the RS485 interface, and the detected data is transmitted to other devices through the wireless network for display.

• Adopt SX1276 wireless communication module
• DC 12V adapter power supply
• Main body protection level IP65/IP67 (Optional)
• The base is equipped with a magnet that can be attached to the iron object
• Detecting the turbidity value and the temperature of the solution
• Compatible with LoRaWANTM Class A
• Frequency hopping spread spectrum technology
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

Electric:

Power Supply

DC12V

Operating Current

<70mA (external sensor)

Turbidity Measurement Range

0 to 1000 ntu

Turbidity Resolution

0.1 ntu

Turbidity Accuracy

<5% or 0.3 ntu

Operation Condition

0 to 50°C, <0.2MPa

Installation Method

Immersive installation, 3/4 NPT pipe thread

Cable Length

5 meters, other lengths can be customized

Protection Class

IP68

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension L 112mm* W 88.19mm* H 32mm
Main Body Weight 160 g
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Brand

Netvox
