Netvox R718PA7 – Wireless Noise Sensor

23 people are viewing this right now
12 products sold in last 17 hours
Selling fast! Over 6 people have this in their carts

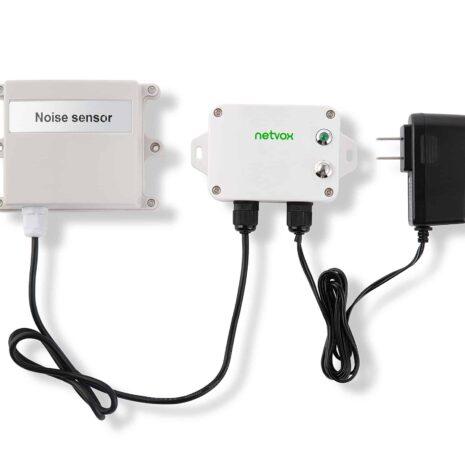

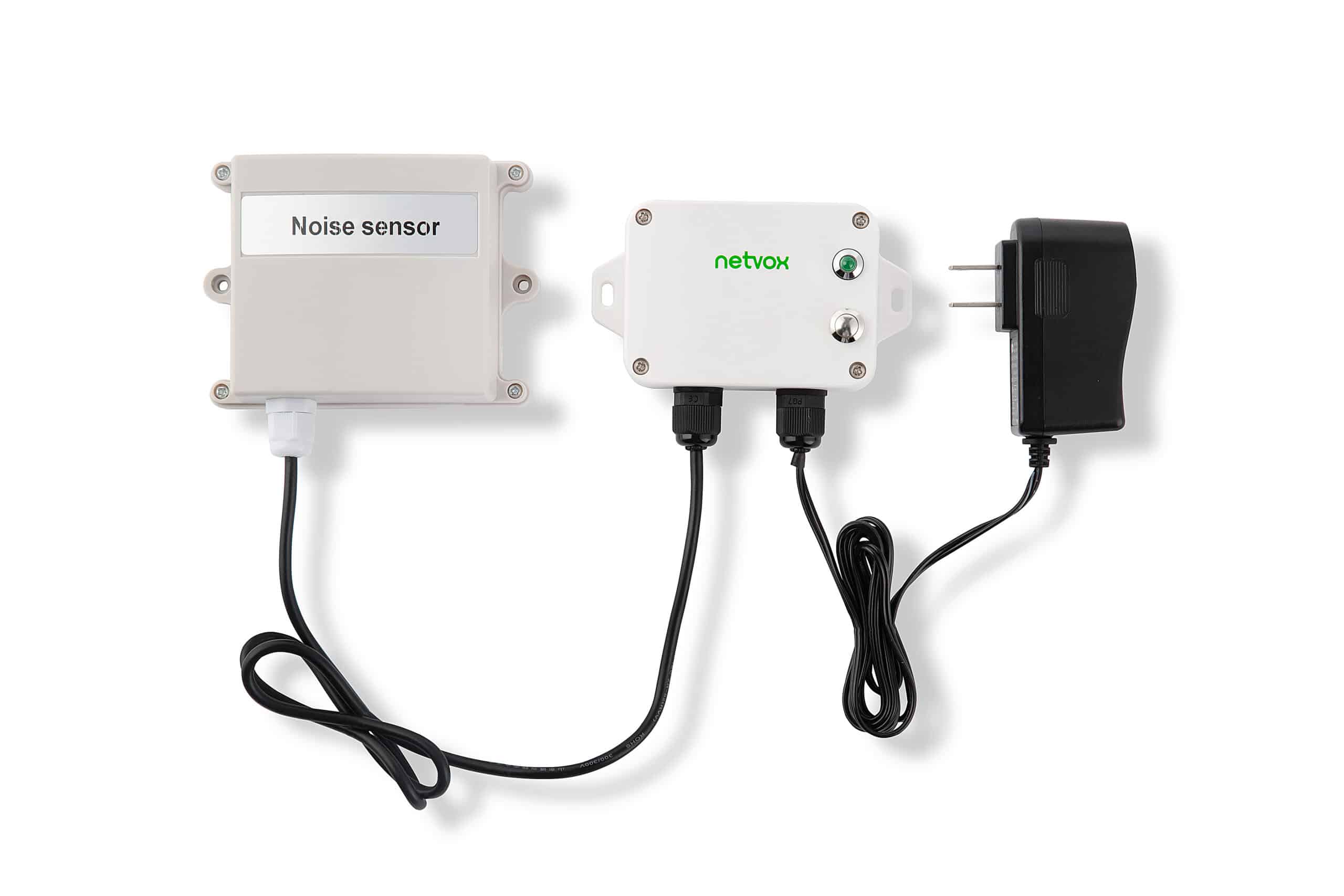

The R718PA7 is a wireless communication device that detects the noise. The main unit and the noise sensor communicate via the RS485 connection interface, and
it sends detected data to the other equipment via wireless network with LoRaTM wireless communication protocol standards.

SKU: R718PA7 Categories: , ,

The R718PA7 is a wireless communication device that detects the noise. The main unit and the noise sensor communicate via the RS485 connection interface, and it sends detected data to the other equipment via wireless network with LoRaTM wireless communication protocol standards.

•Adopt SX1276 wireless communication module
•DC 12V adapter power supply
•Host body IP ratings: IP65/IP67 (option)
•The base is equipped with a magnet that can be attached to the iron object.
•RS485 communication
•Compatible with LoRaWANTM Class A
•Frequency hopping spread spectrum technology
•Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
•Applicable to the third-party platforms: Actility / ThingPark / TTN / MyDevices / Cayenne

Electric:

 Power supply  DC 12V adapter power supply
 Working current  <70mA (external sensor)

* Specific electrical characteristics will vary depending on the power supply voltage

Frequency:

 Frequency range  863MHz-928MHz 470MHz-510MHz
 Power output  US915   20dbm；
AS923   16dbm；
AU915   20dbm；
CN470   19.15dbm；
EU868   16dbm；
KR920   14dbm；
IN865    20dbm；
 Receiving sensitivity  -136dB
(LoRa, Spreading Factor=12, Bit Rate = 293bps);
-121 dBm
( FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps)
 Antenna type  Built-in antenna
 Communication distance  Up to 10 km (visible linear obstacle-free transmission
distance , actual transmission distance depends on the
environment )
 Data transfer rate  0.3kbps to 50kbps
 Modulation system mode  LoRa/FSK (Note: choose one of them)
 Supportable LoRaWAN
band		  EU863-870, US902-928, AU915-928, KR920-923,
AS923, CN470-510 (Note: The frequency band is
optional and needs to be configured before shipment)

Physical:

 Main unit size Main unit – L: 112 mm*W: 88.19 mm*H: 32 mm
Noise Sensor – L: 110 mm*W: 85 mm*H: 44mm
Noise Sensor Waterproof(white)-D: 19.5mm*L: 30.3mm-M12*1.5 (Screw Thread)
 Ambient temperature range  -20 °C to 55 °C
 Main unit weight  About 160g
 Ambient humidity range  <90% RH (No condensation)
 Storage temperature range  -40 °C ~ 85 °C
Brand

Netvox
