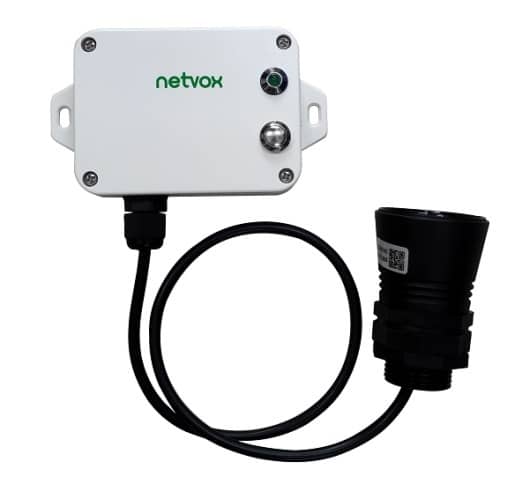

Netvox R718PE01 – Wireless Top-Mounted Ultrasonic Level Sensor

28 people are viewing this right now
4 products sold in last 10 hours
Selling fast! Over 18 people have this in their carts

R718PE01 is a wireless communication device that uses ultrasonic waves to measure
distance. The ultrasonic transmission medium of R718PE01 ultrasonic sensor is air, so the
measured object can be any liquid or solid with a certain plane, which can be used for liquid
level detection, material level detection, etc. The detection angle of R718PE01 is about 20 °,
which has a stronger transmission signal and is more suitable for the detection of objects such
as grain heaps and sand.

SKU: R718PE01 Categories: , ,

R718PE01 is a wireless communication device that uses ultrasonic waves to measure distance. The ultrasonic transmission medium of R718PE01 ultrasonic sensor is air, so the measured object can be any liquid or solid with a certain plane, which can be used for liquid level detection, material level detection, etc. The detection angle of R718PE01 is about 20 °, which has a stronger transmission signal and is more suitable for the detection of objects such as grain heaps and sand.

• Apply SX1276 wireless communication module
• 2 ER14505 batteries AA size in parallel (3.6V / section)
• LoRaWAN™ Class A compatible
• Top-Mounted Ultrasonic Level Sensor
• Liquid level and material level detection
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries
Operating Voltage 3.1v to 3.65
Standby Current <30uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V
Ultrasonic Distance Range 0.25-8m
Measurement Blind Area 0-0.25m
Detection Angle About 20°
Length of Connecting Line 50 cm

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Host body:112mm*89.19mm*32mm
Operating Temperature Range -15°C ~ 55°C
Storage Temperature Range -25°C ~ 70°C
Operating Humidity Range <90%RH (No condensation)
Brand

Netvox
