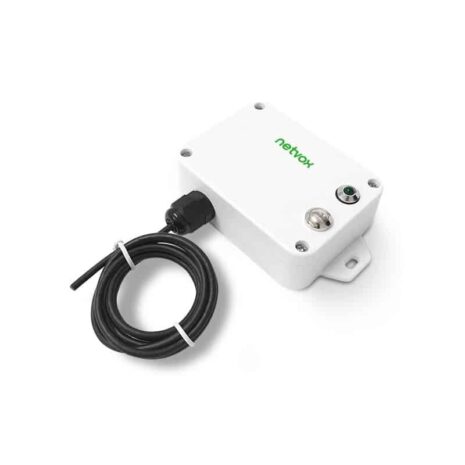

Netvox R718T – Wireless Push Button Interface

27 people are viewing this right now
4 products sold in last 11 hours
Selling fast! Over 7 people have this in their carts

R718T is a Wireless Push Button Interface.
It can connect with an external push button and detect whether the external button is pressed.

SKU: R718T Categories: , ,

R718T is a Wireless Push Button Interface. It can connect with an external push button and detect whether the external button is pressed.

• Apply SX1276 wireless communication module
• 2 ER14505 batteries AA size in parallel (3.6V / section)
• LoRaWAN™ Class A compatible
• Push button interface
• IP rating IP65
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries
Operating Voltage 3.1v to 3.65
Standby Current <22uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Host body:112mm*65mm*32mm
Operating Temperature Range -20°C ~ 55°C
Storage Temperature Range -40°C ~ 85°C
Operating Humidity Range <90%RH (No condensation)
Brand

Netvox
