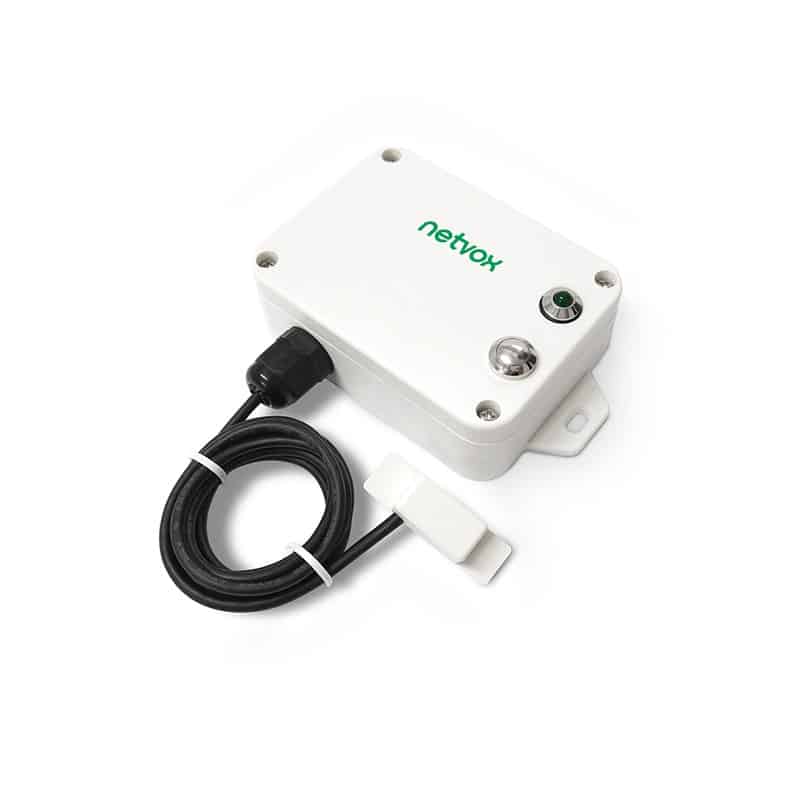

Netvox R718WA – Wireless Water Leak Detector
The device is a LoRaWAN™ device compatible with LoRaWAN™ protocol (Class A). When the sensor detects the leak, it will send an alarm message to the gateway.
R718WA carries 1 water leak sensor.
It uses SX1276 wireless communication module.
The device is a LoRaWAN™ device compatible with LoRaWAN™ protocol (Class A). When the sensor detects the leak, it will send an alarm message to the gateway. R718WA carries 1 water leak sensor. It uses SX1276 wireless communication module.
|
Input Power |
2 x 3.6V ER14505 AA lithium batteries |
|
Sleeping Mode |
22uA |
|
Wake up Mode |
6.3mA@3.3V |
|
Low Voltage Threshold |
3.2V |
|
Receiving Current (max) |
11mA @3.3V |
|
Transmitting Current (max) |
120mA/3.3V |
|
Battery Voltage Measurement |
±0.1V |
Frequency:
|
Water Line Material |
UL2547 28AWG |
|
Water Line Max. Working Temperature |
80 ° C |
|
Water Line Diameter |
2mm |
|
Water Line Length |
1000mm (±5mm) |
|
Water Line Flame Resistance Rating |
VW-1 |
|
Water Line Length Limit |
300m (theoretical value) |
|
Water Sensor Size |
L: 38.5 mm*W: 11.9 mm*H: 13.7 mm |
Physical:
|
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
|
Weight |
141g |
|
Environment Temperature Range |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
|
IP Rating (Main Part) |
IP67 |
|
IP Rating (External Sensor) |
IP67 |
| Brand | Netvox |
|---|
