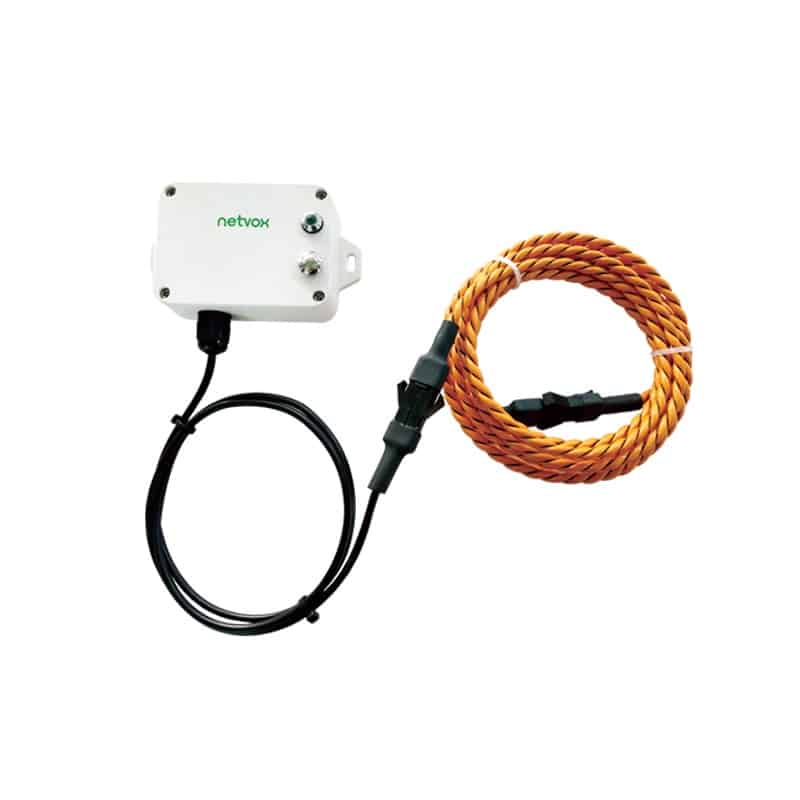

Netvox R718WB – Wireless Water Leak Detector with Rope Sensor

22 people are viewing this right now
16 products sold in last 19 hours
Selling fast! Over 16 people have this in their carts

R718WB is a non-locating leak detection wireless communication device. R718WB can detect the leak status through an external dual-core non-positioning water rope sensor, and send the detected data to data center through the wireless network.

SKU: R718WB Categories: , ,

R718WB is a non-locating leak detection wireless communication device. R718WB can detect the leak status through an external dual-core non-positioning water rope sensor, and send the detected data to data center through the wireless network.

•Apply SX1276 wireless communication module
•2 section of ER14505 battery in parallel (AA SIZE 3.6V / section)
•Non-locating leak detection
•The base is attached with a magnet that can be attached to a ferromagnetic material object
•IP Ratings: Main part – IP65/IP67 (Optional), Sensor-IP67
•LoRaWAN™ Class A compatible
•Frequency Hopping Spread Spectrum (FHSS)
•Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
•Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
•Improved power management for longer battery life

Electric:

Input Power

2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section）

Battery Life

5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)

Sleeping Mode

20uA

Wake up Mode

6.3mA@3.3V

Low Voltage Threshold

3.2V

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Measurement
Accuracy

±0.1V

Frequency:

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Rx Sensitivity

-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

10 km (line-of-sight, the actual transmission distance depends on the environment)

Data Transfer Rate

0.3kbps～50kbps

Spread Technique

LoRa/FSK

Available Frequency

US915       AU915       AS923 EU868       KR920       CN470
Configured before shipment

Physical:

Dimension

Main Part: L: 112mm*W: 65mm*H: 32mm

Weight

141g

Environment Temperature Range

-20℃ ～ 55℃

Environment Humidity Range

<90% RH  (No condensation)

Storage Temperature

-40℃ ～ 85℃
Brand

Netvox
