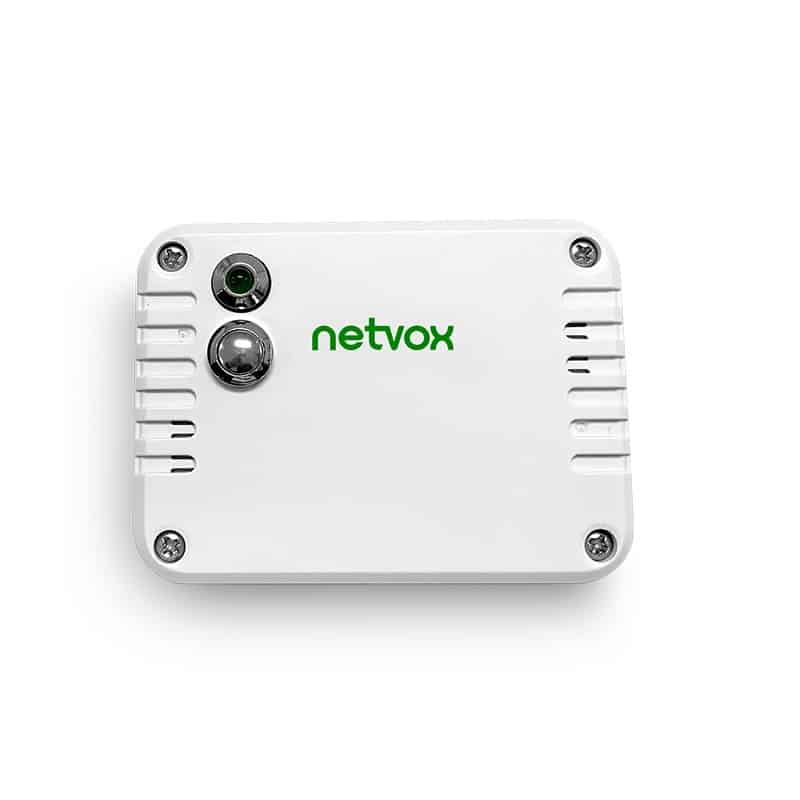

Netvox R720E – Wireless TVOC Detection Sensor

22 people are viewing this right now
14 products sold in last 13 hours
Selling fast! Over 4 people have this in their carts

R720E is a wireless communication device that detects temperature, humility and TVOC. TVOC refers to all organic gaseous substances in a space, and generally refers to the indoor volatile organic substances. TVOC is also the much serious one of the three types of pollution affecting indoor air quality. R720E can detect the concentration value of TVOC.

SKU: R720E Categories: , ,

R720E is a wireless communication device that detects temperature, humility and TVOC. TVOC refers to all organic gaseous substances in a space, and generally refers to the indoor volatile organic substances. TVOC is also the much serious one of the three types of pollution affecting indoor air quality. R720E can detect the concentration value of TVOC.

• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• TVOC concentration detection
• Temperature and humility detection
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER14505 lithium batteries(3.6V2400mah/section)
Standby Current 28uA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 3.2V
TVOC Measurement Range 0 ppb – 60000 ppb
TVOC Measurement Resolution 0 ppb – 2008 ppb: 1 ppb
2008 ppb –11110 ppb: 6 ppb
11110 ppb – 60000 ppb: 32 ppb
TVOC Concentration Range Reference Description 1. Excellent: 0-65 ppb
2. Good: 65-220 ppb
3. Moderate: 220-660 ppb
4. Poor: 660-2200 ppb
5. Unhealthy: 2200-60000 ppb

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension L 88mm* W 65mm* H 19mm
Host body Weight 113 g
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Brand

Netvox
