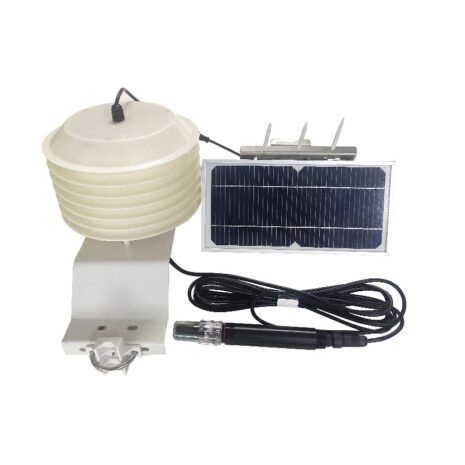

Netvox R72608 – Wireless Outdoor Water pH Sensor with a Solar Panel

26 people are viewing this right now
12 products sold in last 5 hours
Selling fast! Over 9 people have this in their carts

R72608 is a device used for pH and water temperature detection of the water environment. It can detect and
send the data of pH and temperature by the wireless communication method which adopts SX1276 wireless
communication module.

SKU: R72608 Categories: , ,

R72608 is a device used for pH and water temperature detection of the water environment. It can detect and send the data of pH and temperature by the wireless communication method which adopts SX1276 wireless communication module.

• Apply SX1276 wireless communication module
• PH value and water temperature detection
• Solar panel charging function
• A rechargeable battery box
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to the third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
• Low power consumption and long battery life

Electric:

Power supply

3 rechargeable lithium batteries in series (each section of rechargeable lithium battery 3.7V)

Operating Voltage

9.8VDC～12.6VDC

Low Voltage Warning

10.5V

Operating Current 1

<100mA

Solar Panel Specification

5W/18VDC

Lithium Battery Pack Charging Current

About 300mA (ensure sufficient sunshine intensity)

pH Measurement Range

0 to 14 PH

Temperature Measurement Range

0° to 65°

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Operating Temperature -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
