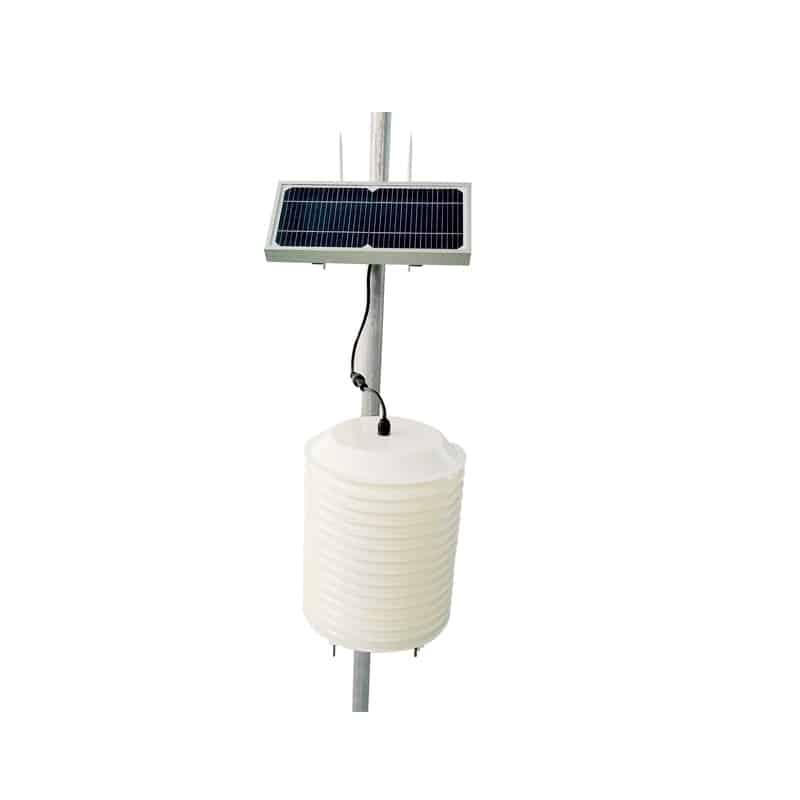

Netvox R72615 – Wireless Outdoor CO2, Temperature, Humidity Sensor with Solar Panel

د.إ2,740

28 people are viewing this right now
11 products sold in last 17 hours
Selling fast! Over 8 people have this in their carts

The R72615 is equipped with a temperature and humidity sensor that detects and transmits ambient
temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless
communication module. The R72615 has a CO2 sensor that detects the concentration of CO2 in the air.

SKU: R72615 Categories: , , , ,

The R72615 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72615 has a CO2 sensor that detects the concentration of CO2 in the air.

  • LoRaWAN™  compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Improved interference immunity
  • Encrypt-RFâ„¢ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
  • Over-the-air updates (future)
  • Third-party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
  • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
  • Uses SX1276 wireless communication module



*1. Actual range may vary depending on environment.

*2. Battery life is determined by sensor reporting frequency and other variables

Electric:

Power Supply 3 rechargeable lithium batteries in series (single-cell rechargeable lithium battery 3.7V, capacity recommended 5000mah)
Operating Voltage Range 9.8VDC ~ 12.6VDC
Operating Current 1 15mA (Standby mode)
Operating Current 2 30mA (When the sensor is working.)

Frequency:

TX Power 19dBm±1dBm
Rx Sensitivity -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Build-in antenna
Communication Range 10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate 0.3kbps～50kbps
Spread Technique LoRa/FSK
Available Frequency EU863-870，US902-928，AU915-928，KR920-923，AS923，CN470-510    Configured before shipment

Physical:

Dimension Mask body: D220mm*H340mm,
Solar panel size: 290mm*150mm*25mm
Operating Temperature Range -20℃ ～ 55℃
Operating Humidity Range < 90%RH (no condensation)
Storage Temperature range -40℃ ～ 85℃
Brand

Netvox
