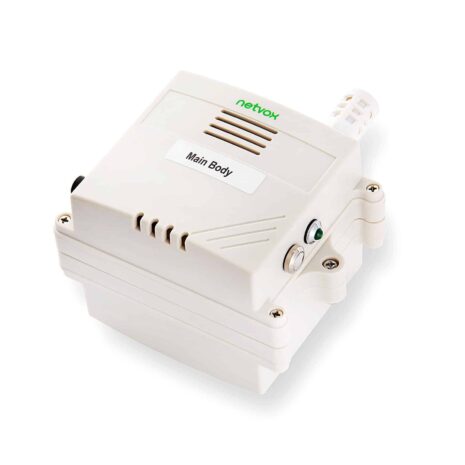

Netvox R72616A – Wireless PM2.5, Temperature, Humidity Sensor

د.إ1,225

21 people are viewing this right now
2 products sold in last 13 hours
Selling fast! Over 7 people have this in their carts

R72616A with temperature and humidity sensor can detect and send the temperature and humidity data of the environment. The device is in line with the LoRa protocol standard. R72616A with PM2.5 dust sensor can be used to obtain the concentration of suspended particulates in air per unit volume.

SKU: R72616A Categories: , , ,

R72616A with temperature and humidity sensor can detect and send the temperature and humidity data of the environment. The device is in line with the LoRa protocol standard. R72616A with PM2.5 dust sensor can be used to obtain the concentration of suspended particulates in air per unit volume.

•Compatible with LoRaWAN™ protocol
•Temperature and humidity detection
•Detecting particle concentration of the air (PM2.5)
•Adopt SX1276 wireless communication module
•Compatible with LoRaWANTM Class A
•Frequency hopping spread spectrum technology
•Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
•Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn



Electric:

Power Supply Mode 8 sections of ER14505 lithium batteries
Battery Life Time 1 year
Operating Voltage Range 6.8VDC ~ 7.3VDC
Standyby Current 250uA
Operating Current 60mA (when the sensor is working)
Temperature Measurement Range -20°C to 55°C
Temperature Measurement Accuracy ±1°C @25°C
Humidity Measurement Range 0%RH to 100%RH
Humidity Measurement Range ±4%RH @25°C
Particle Measurement Range 0.3 ~ 1.0 ; 1.0 ~ 2.5um
Particle Counting Efficiency 50%@0.3um，98%@≥0.5um
Particle Mass Concentration Effective Range 0~500μg/m3
Particle Mass Concentration Resolution 1μg/m3
Humidity Measurement Range ±4%RH @25°C

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension 117mm x 114mm x 82.6mm
Operating Temperature -20℃ ~ 55℃
Storage Temperature Range -40°C ~ 85°C
Environment Humidity Range <90%RH (No condensation)
