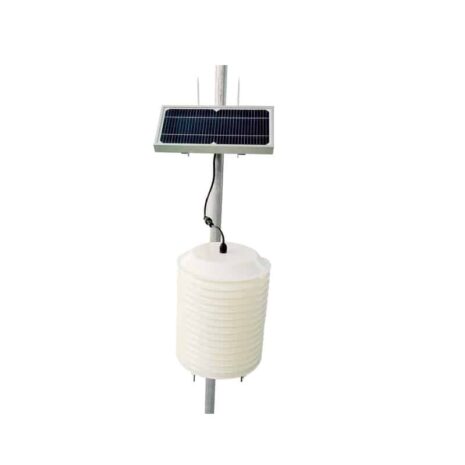

Netvox R72624 – Wireless Outdoor Noise, Temperature, Humidity Sensor with a Solar Panel

د.إ3,775

29 people are viewing this right now
4 products sold in last 10 hours
Selling fast! Over 15 people have this in their carts

R72624 has the built-in noise detector and the built-in temperature and humidity sensor that can
detect the value of noise, temperature and humidity and transmit the detected data to other device
via the wireless network for display.

SKU: R72624 Categories: , , , ,

R72624 has the built-in noise detector and the built-in temperature and humidity sensor that can detect the value of noise, temperature and humidity and transmit the detected data to other device via the wireless network for display.

• Apply SX1276 wireless communication module
• Noise, temperature, and humidity detection
• With solar panel charging function
• Rechargeable battery pack (Users need to purchase and install rechargeable lithium
batteries by self)
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to the third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
• Low power consumption and long battery life

Electric:

Power supply

3 rechargeable lithium batteries(18650) in series(single-cell rechargeable lithium battery is 3.7V, and the capacity recommended 3500mah)

Operating Voltage

9.8VDC～12.6VDC

Low Voltage Warning

10.5V

Operating Current 1

<15mA (Standby mode)

Operating Current 2

<30mA (Operating mode)

Solar Panel Specification

5W/18VDC

Lithium Battery Pack Charging Current

About 300mA (ensure sufficient sunshine intensity)

Noise Measurement Range

30dB-130dB

Temperature Measurement Range

-20° to 55°

Humidity Measurement Range

0%RH-100%RH

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Mask Part: D 220mm*H 340mm
Host body：117mm*89mm*41mm
Solar panel size: 290mm*150mm*25mm
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Brand

Netvox
