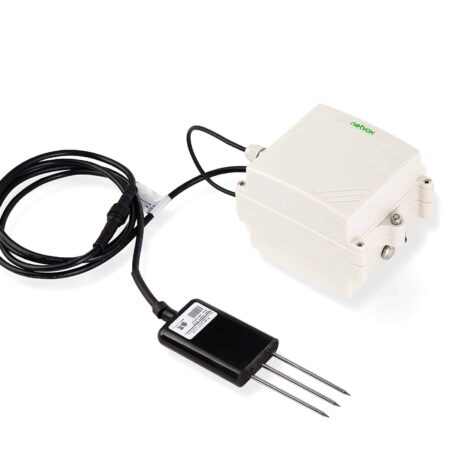

Netvox R72632A – Wireless NPK Sensor

27 people are viewing this right now
4 products sold in last 7 hours
Selling fast! Over 20 people have this in their carts

R72632A can detect and send soil nitrogen (N), phosphorus (P) and potassium (K) data. It is a
wireless communication mode, adopts SX1276 wireless communication module.

SKU: R72632A Categories: , ,

R72632A can detect and send soil nitrogen (N), phosphorus (P) and potassium (K) data. It is a wireless communication mode, adopts SX1276 wireless communication module.

• Apply SX1276 wireless communication module
• 2 x 3.6v ER34615 power supply
• LoRaWAN™ Class A compatible
• Soil nitrogen (N), phosphorus (P) and potassium (K) detection
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply 2×3.6V ER34615 lithium batteries
Operating Voltage 6.8v to 7.2v
Standby Current ≤400uA
Wakeup Current 6.3mA
Receiving Current (max) 11mA @3.3V
Transmitting Current (max) 120mA/3.3V
Battery Voltage Accuracy ±0.1V
Low Voltage Threshold 6.8V
Detection Range of Soil NPK 0-1999 mg/kg

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Main Body: 117 mm x 89.05 mm x 82 mm
NPK Sensor: 137mm x 45mm x 15mm
Sensor Wiring 1.25m
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Brand

Netvox
