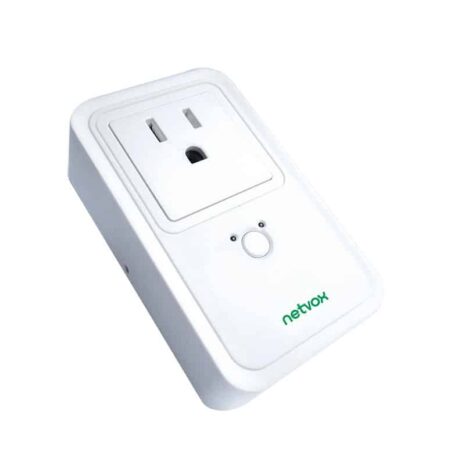

Netvox R809A01-Wireless Plug-and-Play Power Outlet with Consumption Monitoring and Power Outage Detection

د.إ575

25 people are viewing this right now
2 products sold in last 17 hours
Selling fast! Over 14 people have this in their carts

The R809A01 is a wireless power plug converter for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control.
R809A01 has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control. R809A01 supports the wireless module to send a power off alarm signal to the gateway after power off

SKU: R809A01 Categories: , ,

Main Characteristic

  •  LoRa/FSK modulation communication, long-distance wireless communication
  •  Adopt SX1276 wireless communication module
  •  Compatible with LoRaWANâ„¢ Class C
  •  Built-in memory for storing power consumption data
  •  After the power is cut off, a power off alarm signal will be sent.

Example Applications

  •  Indoor electric energy testing equipment for home, hotel, office building, shopping mall, etc.
  •  Smart city
  •  Thermal system equipment

Features of  NETVOX Sensors

  •  Wireless range of 10km *1
  •  Frequency Hopping Spread Spectrum (FHSS)
  •  LoRaWANâ„¢ Class C compatible
  •  Improved interference immunity
  •  Encrypt-RFâ„¢ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
  •  Over-the-air updates (future)
  •  Third-Party online wireless sensor monitoring and notification system to configure sensors, view data

and set alerts via SMS text and email (optional)

  •  Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

*1. Actual range may vary depending on environment.

Electric:

Rated working power supply 100-240VAC, 50/60Hz
Typical Operating Current 15mA/220VAC/1W
Typical Load Characteristics Resistive load: 16A/250VAC; P: 4000VA
Inductive load: 8A/220VAC; P: 1760VA (COSφ=0.4)
Motor load: 1.5HP/240VAC
White Lamp, fluorescent lamp, gold halogen lamp: 3000W/220VAC
Relay Switch Life Times 100,000 times
Current Measurement Accuracy Range 100mA~16A
Energy Measurement Error <+-1%

Frequency:

TX Power 19dBm±1dBm
Rx Sensitivity -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Build-in antenna
Communication Range 10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate 0.3kbps～50kbps
Spread Technique LoRa/FSK
Available Frequency EU863-870，US902-928，AU915-928，KR920-923，AS923，CN470-510   Configured before shipment

Physical:

Dimension 95mm*58mm*42.5mm (without plug part)
Environment Temperature Range -20℃ ～ 50℃
Environment Humidity Range <90% RH  (No condensation)
Storage Temperature -40℃ ～ 85℃
Weight 126.5g
Brand

Netvox
