Netvox R816B-Wireless US Type Wall Socket with Power Meter

25 people are viewing this right now
6 products sold in last 20 hours
Selling fast! Over 16 people have this in their carts

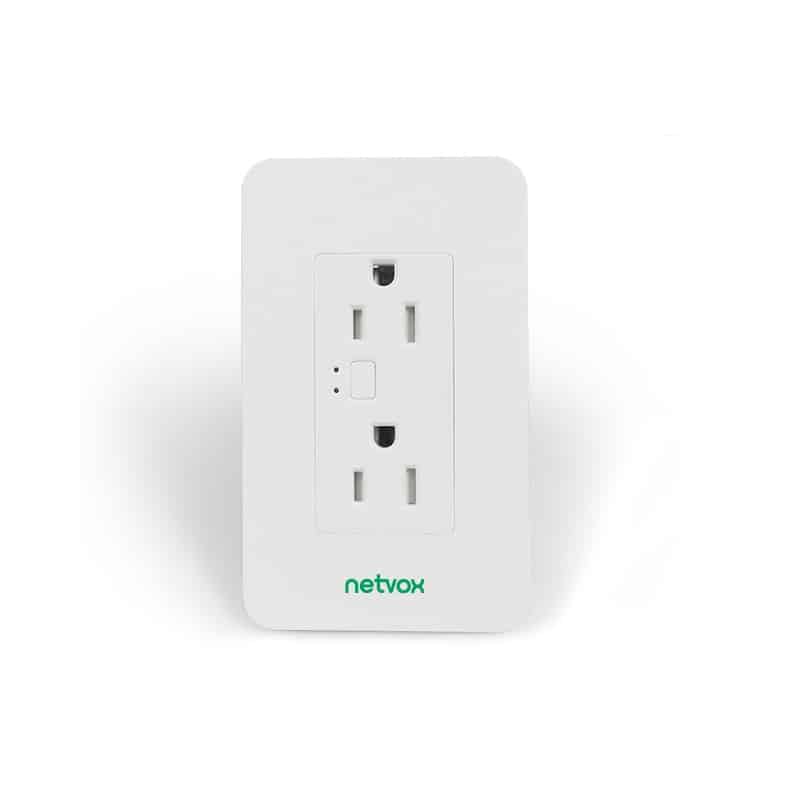

R816B (wireless wall socket with energy consumption monitoring (US)) is a smart electrical switch socket for indoor use. It is suitable for US standard wall cassette installation. The output socket is suitable for US standard 2 or 3 pole plug; rated output load is 15A/120V.

R816B integrates LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control. It can control the single-channel power output to be turned on and off through internal relay, and can detect the current, voltage, power, and electrical energy of the device connected to it.

(Note: the output of the upper socket is uncontrolled, the output of the lower socket is the relay control output, and the output power detection function is provided. There is a relay control button and two LED indicators between the two sockets.)

SKU: R816B Categories: , ,
  • Can be embedded in indoor walls such as home or business
  • LoRa/FSK modulation communication, long-distance wireless communication
  • Adopt SX1276 wireless communication module
  • Compatible with LoRaWAN Class C
  • Detect electrical parameters such as output current, voltage, power, and electrical energy
  • Power output switch can be controlled by network
  • Power output switch can be manually controlled in the unit
  • Rated 15A/120VAC power output

Electric:

Input power 100-240VAC, 50/60Hz
Typical power consumption 13mA/120VAC/0.8W
Built-in relay load characteristics Resistive load: 16A/250VAC; P: 4000VA
Inductive load:8A/220VAC; P:1760VA
(COS φ =0.4 )
Motor load: 0.5HP/120VAC
Incandescent, fluorescent, gold halogen lamps: 3000W/220VAC
Anti-surge current 200A/2ms
Relay switch life time (on/off) 100,000 times (pure resistive load)
Energy measurement error <±1%
Energy measurement accuracy range 100mA~15A
Flammability rating UL 94V-0

Frequency:

Frequency range 863MHz-928MHz, 470MHz-510MHz
Power output 19 dBm ±1dBm
Receiving sensitivity -121 dBm
(Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna type Built-in antenna
Communication distance 4km (visible straight line distance)
Data transfer rate 0.3kbps to 50k bps
Modulation system mode LoRa/FSK (Note: choose one of them)
Supportable LoRaWAN band EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Shape size 113.0 mm * 69.0 mm * 39.5 mm (without wires)
Wire length (exposed) 160mm
Working environment humidity 5% to 85% RH (no condense)
Working environment temperature -10°C to 50°C
Storage ambient temperature -40°C to 85 °C
Brand

Netvox
