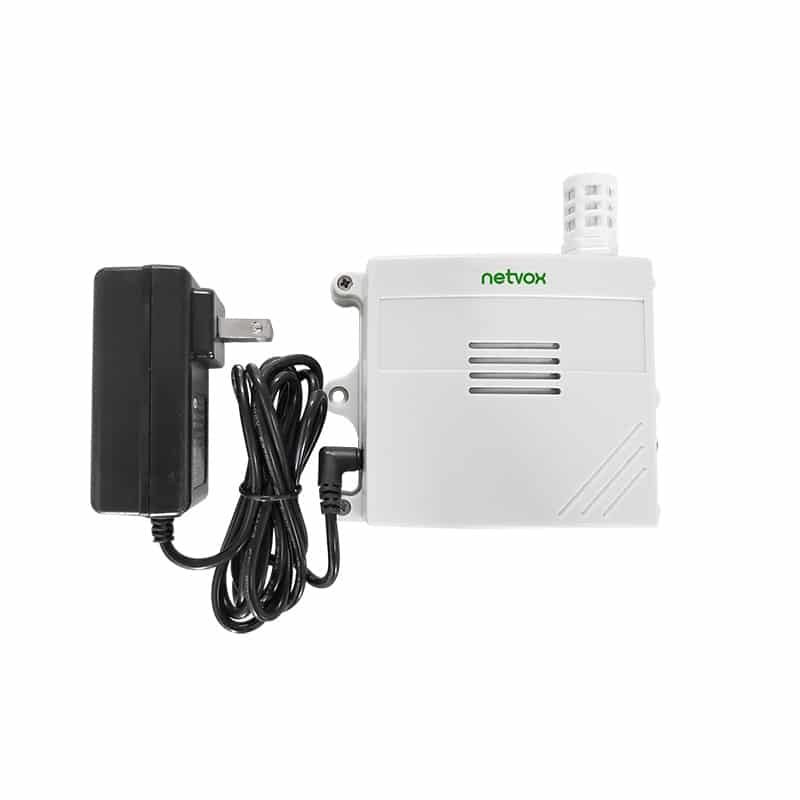

Netvox RA0715 – Wireless CO2, Temperature & Humidity Sensor

22 people are viewing this right now
3 products sold in last 7 hours
Selling fast! 1 person has this in their cart

RA0715 is equipped with temperature and humidity sensor externally. It can monitor the ambient temperature and humidity and send the data via wireless method that adopts SX1276 wireless communication module. RA0715 is equipped with CO2 sensor that can detect the concentration of CO2 in the air.

SKU: RA0715 Categories: , ,

RA0715 is equipped with temperature and humidity sensor externally. It can monitor the ambient temperature and humidity and send the data via wireless method that adopts SX1276 wireless communication module. RA0715 is equipped with CO2 sensor that can detect the concentration of CO2 in the air.

• Adopt SX1276 wireless communication module
• 12V DC power supply
• Temperature and humility detection
• CO2 detection
• Compatible with LoRaWAN™ Class A
• Frequency hopping spread spectrum technology
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

Electric:

Power Supply

DC12V

Operating Current 1

25mA (Standby status)

Operating Current 2

40mA (Operating status)

Temperature Measurement Range

-20°C ~ 55°C

Temperature Accuracy

±0.5°C@25°C , Max ±0.8°C@-20°C~55°C

Humidity Measurement Range

0%RH-100%RH

Humidity Accuracy

±4%RH @ 25°C

CO2 Measurement Range

400-5000ppm

CO2 Accuracy

± 100ppm + 6% reading

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension L 117mm* W 114mm* H 41mm
Operating Temperature -20°C ~ 55°C
Storage Temperature -40°C ~ 85°C
Ambient Humidity <90%RH (No condensation)
Brand

Netvox
