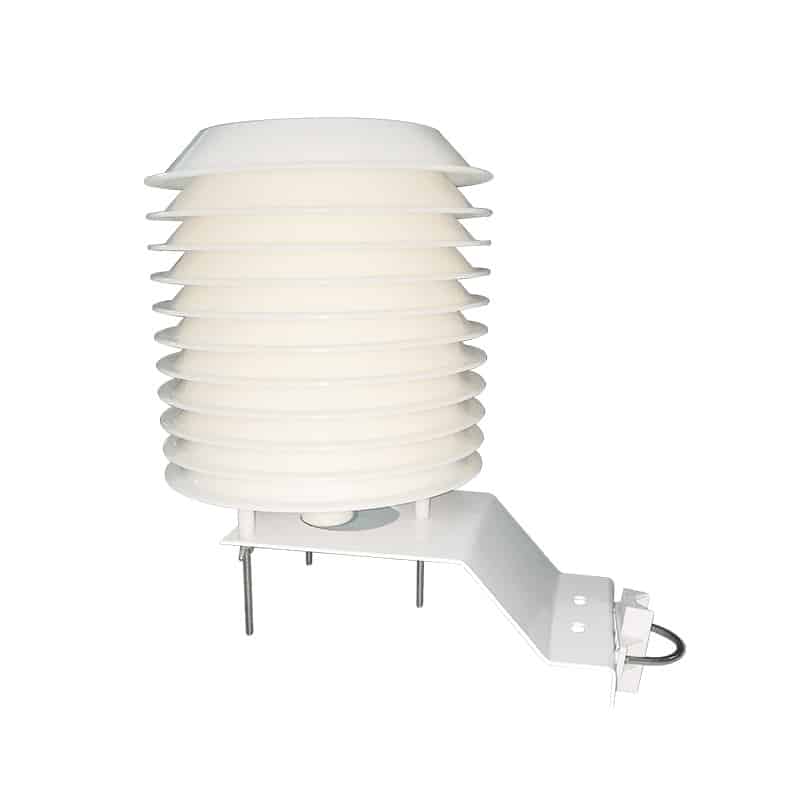

Netvox RA0716Y – Wireless Outdoor PM2.5 Temperature Humidity Sensor
RA0716Y carrying temperature and humidity sensors that can detect and send the environment temperature and humidity data with wireless communication, compatible with LoRaWAN™ protocol standards. R72716 carrying PM2.5 dust sensor which can obtain the concentration of suspended particulate matter in the air per unit volume.
RA0716Y carrying temperature and humidity sensors that can detect and send the environment temperature and humidity data with wireless communication, compatible with LoRaWAN™ protocol standards. R72716 carrying PM2.5 dust sensor which can obtain the concentration of suspended particulate matter in the air per unit volume.
• Temperature and humidity detection
• PM2.5 dust sensor
• LoRaWAN™ protocol
Electric:
| Power supply | Adapter DC powered（12V/1.5A） |
| Working voltage | 40mA/12V(DC) |
| RX current | 11mA @3.3V |
| TX current | 120mA @3.3V |
| Particle measurement range | 0.3~1.0；1.0~2.5；2.5~10 微米（um） |
| Particle mass concentration Effective range (PM2.5 standard value) | 0~500 (μg/m3) |
| Temperature measurement range | 0°C － 60°C |
| Temperature measurement accuracy | +-0.5°C @25°C |
| Humidity measurement range | 10%RH—90%RH |
| Humidity measurement accuracy | +/-4%RH @25°C |
Frequency:
| Frequency Range | 868MHz，915MHz，923MHz （Note：must be configurated before shipping） |
| TX power | 19dBm（Typical） |
| Rx sensitivity | -121dBm (Frequency deviation=5kHz,Bit Rate=1.2kb/s) |
| Build-in antenna | Build-in antenna |
| Communication range | 2km（Typical output power） |
| Data transfer rate | 1.2～50kbps |
| Spread technique | LoRa/FSK/OOK |
Physical:
| Dimension |
350mm*220mm*220mm |
|
Working Temp |
-10°C ～ +50°C |
|
Storage Temp |
-40°C ～ +85°C |
| Brand | Netvox |
|---|
