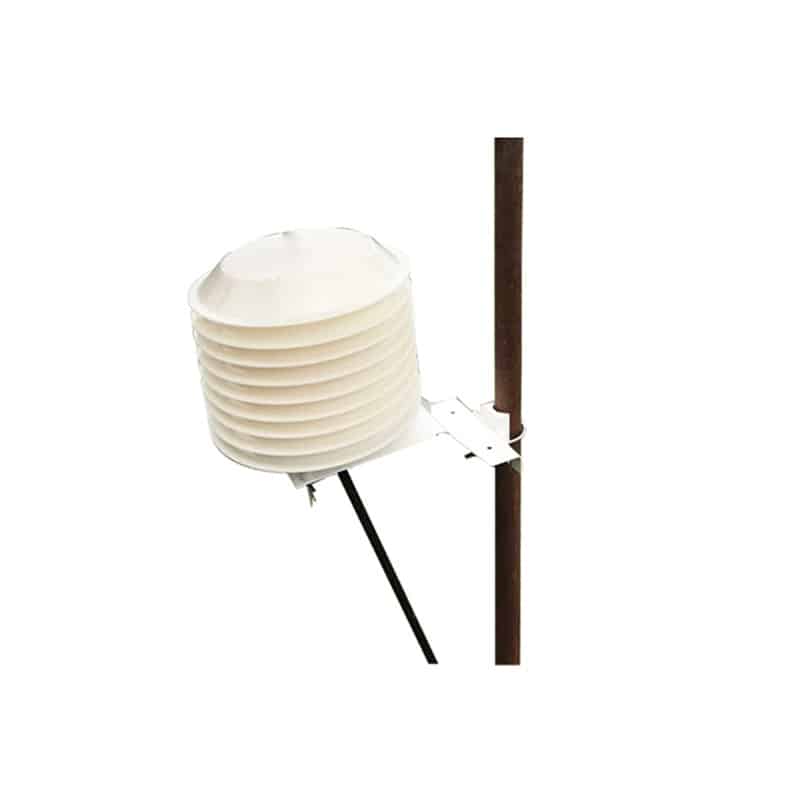

Netvox RA0723Y – Wireless PM2.5, Noise, Temperature, Humidity Sensor
RA0723Y is a wireless communication device which can detect PM2.5, noise intensity,
temperature and humidity of the environment.
RA0723Y is a wireless communication device which can detect PM2.5, noise intensity, temperature and humidity of the environment.
• Adopt SX1276 wireless communication module
• Temperature and humility detection
• Noise and PM2.5 detection
• Compatible with LoRaWAN™ Class A
• Frequency hopping spread spectrum technology
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Electric:
Power Supply |
DC12V |
Operating Current 1 |
<150mA |
Temperature Measurement Range |
-20°C ~ 55°C |
Temperature Accuracy |
±1°C@25°C |
Humidity Measurement Range |
0%RH-100%RH |
Humidity Accuracy |
±4%RH @ 25°C |
PM2.5 Measurement Range |
0.3 ~ 1.0 ; 1.0 ~ 2.5um |
Noise Measurement Range |
30dB to 130dB |
Frequency:
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
TX Power |
US915 20dbmï¼› |
Receiving Sensitivity |
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps ); |
Antenna Type |
Built-in antenna |
Communication Distance |
Up to 10 km |
Data Transfer Rate |
LoRa: 0.3kbps~50kbps |
Modulation |
LoRa/FSK (Note: You can choose one of them) |
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
Dimension | Mask part: D 220mm*H 280mm, Host body: L 117mm* W 113.5mm* H 41mm |
Operating Temperature Range | -20°C ~ 55°C |
Storage Temperature Range | -40°C ~ 85°C |
Operating Humidity Range | <90%RH (No condensation) |
Brand | Netvox |
---|
