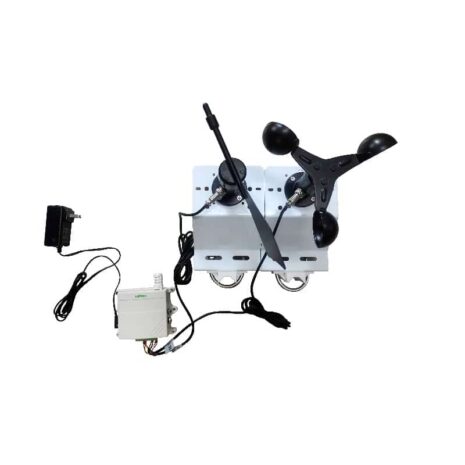

Netvox RA0730 – Wireless Wind Speed, Wind Direction, Temperature and Humidity Sensor

22 people are viewing this right now
14 products sold in last 2 hours
Selling fast! Over 4 people have this in their carts

RA0730 is equipped with wind speed sensor, wind direction sensor, and temperature and humidity
sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the
environment.

SKU: RA0730 Categories: , , ,

RA0730 is equipped with wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment.

• Adopt SX1276 wireless communication module
• Wind speed, Wind direction detection
• Temperature and humidity detection
• DC 12V power supply
• Compatible with LoRaWAN™ Class A
• Frequency hopping spread spectrum technology
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne



Electric:
2

Power Supply

DC12V

Operating Current

150mA

Wind Speed Measurement Range

0-30m/s

Temperature Measurement Range

-20° to 55°

Humidity Measurement Range

0% to 100%

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension Host body：117mm*113.5mm*41mm
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
Brand

Netvox
