Netvox RA07W – Wireless Water Leak Detection and Location Sensor

24 people are viewing this right now
14 products sold in last 11 hours
Selling fast! Over 12 people have this in their carts

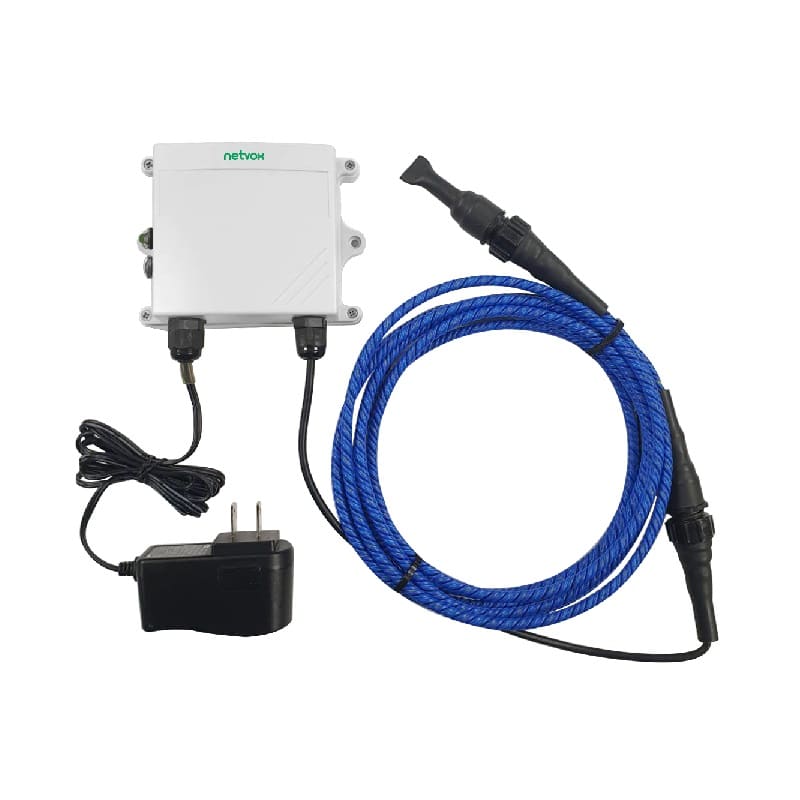

RA07W is a water leak detector leak locating equipment, which can be connected to water leak sensor through the external four-core positioning leak detection sensor line to detect the water leak location, and transmit the detected data to other devices through the wireless network.

SKU: RA07W Categories: , ,

RA07W is a water leak detector leak locating equipment, which can be connected to water leak sensor through the external four-core positioning leak detection sensor line to detect the water leak location, and transmit the detected data to other devices through the wireless network.

•Compatible with LoRaWAN™ protocol
•Detection of water leak detection line contact with the water location
•Power supply: DC 12V
•Adopt SX1276 wireless communication module
•Compatible with LoRaWANTM Class A
•Frequency hopping spread spectrum technology
•Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
•Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn

Electric:

Power Supply

DC12V/1A

Operating Current 1

40mA (no radio frequency signal transmission)

Operating Current 2

80mA (a radio frequency signal emission)

Position Water Leak Detector

100m (max);

Leak Detection Error Range

1% ± 0.5 meters of sensor cable length

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension 111mm*86mm*41mm
Operating Temperature -20℃ ~ 55℃
Storage Temperature Range -40°C ~ 85°C
Environment Humidity Range 5%RH～95%RH



Brand

Netvox
