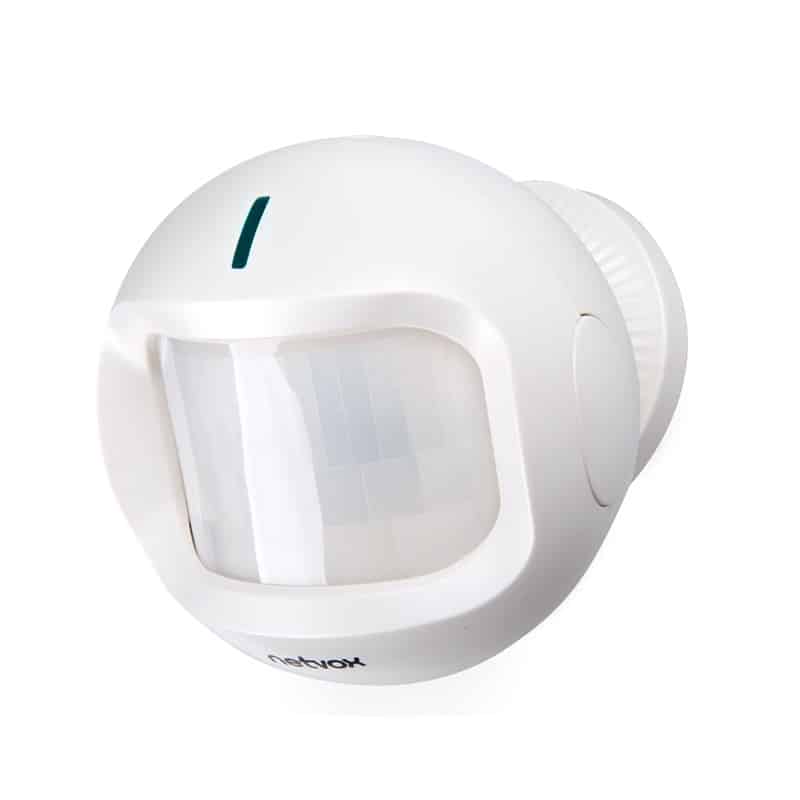

Netvox RB11E-Wireless Occupancy/Temperature/Light Sensor
RB11E is a Wireless Occupancy/Light/Temperature Sensor for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol.
It combines occupancy ,temperature, tamper switch and light sensors that suitable for detecting human movement indoors, illuminance and temperature.
RB11E is a Wireless Occupancy/Light/Temperature Sensor for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. It combines occupancy ,temperature, tamper switch and light sensors that suitable for detecting human movement indoors, illuminance and temperature.
• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• Detection angle: Horizontal 110°, vertical 60°
• Mechanical rotation angle is 40 °
• Built-in light sensor, temperature sensor, occupancy sensor, tamper switch
• Detection speed: ≥0.2 meters/second and triggering alarm
• Temperature measurement range: -20 ℃ -55 ℃
• Temperature measurement accuracy: ± 2 ℃
• Light sensor measurement range: 2-1100 Lux
• Light sensor accuracy: ≦15%
• Battery measurement accuracy : ± 0.1V
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Electric:
|
Input Power |
2pcs of 3.6V ER14505 |
|
Operating Voltage |
3.1V～3.65V |
|
Standby Current |
110uA |
|
Transmitting Current(max) |
120mA |
|
Receiving Current(max) |
11mA |
|
Measurement Accuracy |
±0.1V |
Frequency:
|
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
|
TX Power |
US915 20dbmï¼› |
|
Receiving Sensitivity |
-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； |
|
Antenna Type |
Built-in antenna |
|
Communication Distance |
Up to 10 km |
|
Data Transfer Rate |
0.3kbps～50kbps |
|
Modulation |
LoRa/FSK (Note: You can choose one of them) |
|
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
|
Dimension |
78mm*78.8mm*82.2mm |
|
Weight |
125.8g |
|
Operating Humidity |
＜90%RH |
|
Operating Temperature |
-20°C ～ 55°C |
|
Storage Temperature |
-40°C ～ 85°C |
| Brand | Netvox |
|---|
