Oyster3 LoRaWAN GPS Battery Powered Tracker

23 people are viewing this right now
4 products sold in last 14 hours
Selling fast! Over 6 people have this in their carts

Next-generation of our best-selling Oyster series – Ultra-rugged battery-powered GPS asset tracking device for LoRaWAN networks featuring 10 years battery life (4x battery life of Oyster LoRaWAN V1)

  • Deploy-once battery life with up to 10+ years on only 3 x AA user-replaceable batteries
  • Powered by off-the-shelf Lithium or Lithium Thionyl Chloride (LTC) batteries for extreme temperature operation
  • Tracks assets when they’re on the move and enters sleep mode when stationary to conserve power
  • Periodic battery status uplinks give a breakdown of power use
  • Weatherproof and ultra-rugged IP67 housing
  • All 868, 902-928MHz LoRaWAN® regions supported
SKU: OYSTER3-LORAWAN Categories: , , , Tags: , , , ,

Oyster3 LoRaWAN® Features

Global Connectivity

Highly sensitive radio transceiver is available in a single multiband device. Both 868 and 902 – 928 MHz supported.

High Precision

GPS, GLONASS, Galileo, QZSS positioning systems are used simultaneously for enhanced accuracy and faster fixes.

LoRaWAN Geolocation Fallback

LoRaWAN gateway geolocation fallback when there is no GNSS (planned).

Rugged & Weatherproof

IP67 rated housing ensures the device can withstand fine dust, high-pressure spray, submersion for 30 minutes in 1m of water, and extreme temperatures.

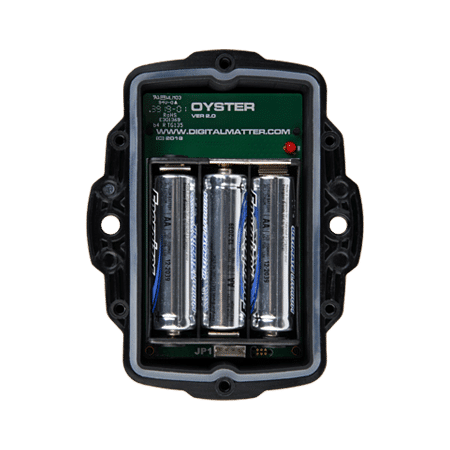

Off-the-Shelf Batteries

Powered by 3 x AA Off-the-Shelf Lithium or Lithium Thionyl Chloride (LTC) batteries for enhanced temperature operation (-30°C to +60°C). Periodic battery status uplinks give a breakdown of power use.

Periodic or Movement-Based

Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.

Sleep Mode

Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage.

Flexible Configuration

Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application. Manage device firmware updates and parameters via DMLink provisioning tool. Some parameters can be changed via downlink.

Integration

Easy integration with comprehensive documentation and a flexible and open payload format.

Global Support

Experienced support engineers for hardware, software, configuration, and integration guidance.

Lorawan gps tracker

Manufacturer

Digital Matter
Brand

Digital Matter
BATTERIES

3 x AA. Batteries not included.
Battery Life Estimates

Hourly location updates – 2 years, Movement-Based location updates – 5 years, Once Daily location updates – 10+ years
Battery Life Monitoring

Periodic battery status uplinks give a breakdown of power use
CONNECTIVITY

Lorawan
Chipset

Sony CXD5605
Constellation

Concurrent GPS, GLONASS, Galileo, QZSS
Cloud-Based Solver

Asset location is calculated in Digital Matter’s Location Engine
Tracking Sensitivity

-147dBm cold start / -161dBm hot start
Location Accuracy

~1m 2D RMS, GPS, -130dBm
GNSS Assistance

GNSS almanac data for greater sensitivity and position accuracy
Low Noise Amplifier

GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail
LoRaWAN® Geolocation

LoRaWAN gateway geolocation fallback when there is no GNSS (planned)
Input Voltage

4-15V DC
Sleep Current

<10uA* *Average current in lowest power configuration
Dimensions

108 x 86 x 30 mm (4.25 x 3.39 x 1.18″)
Weight

180g
Housing

Ultra-Rugged IP67 Housing
IP Rating

IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures
Installation

Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
Operating Temperature

-30°C to +60°C
RF Antenna

Internal
GPS Antenna

Internal
3-Axis Accelerometer

3-Axis Accelerometer to detect movement
Diagnostic LED

Diagnostic LED indicates operation status
Geofence Alerts

The server can use device location to create geofences and alerts if an asset enters or leaves designated locations
Speed and Heading

Current speed and heading is reported with each position update
DEVICE MANAGEMENT

Configuration App, Flexible Configuration
SECURITY

LoRaWAN networks use AES-128 Encryption so your data is protected
INTEGRATION

Third-Party Integration
Theft Recovery

Reduce or minimize asset loss and theft
Tip Detection and Rotation Counting

Axis angle reporting, tip detection and rotation counting (planned)
Warranty

Two-year manufacturer’s warranty.
