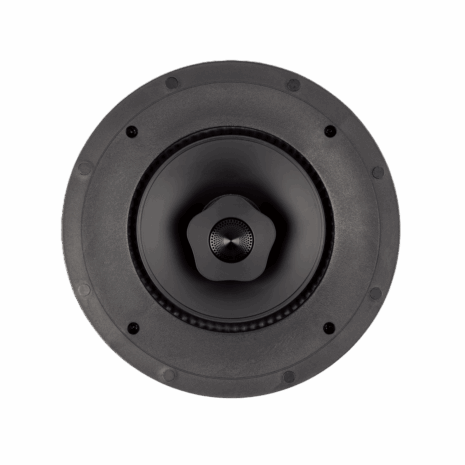

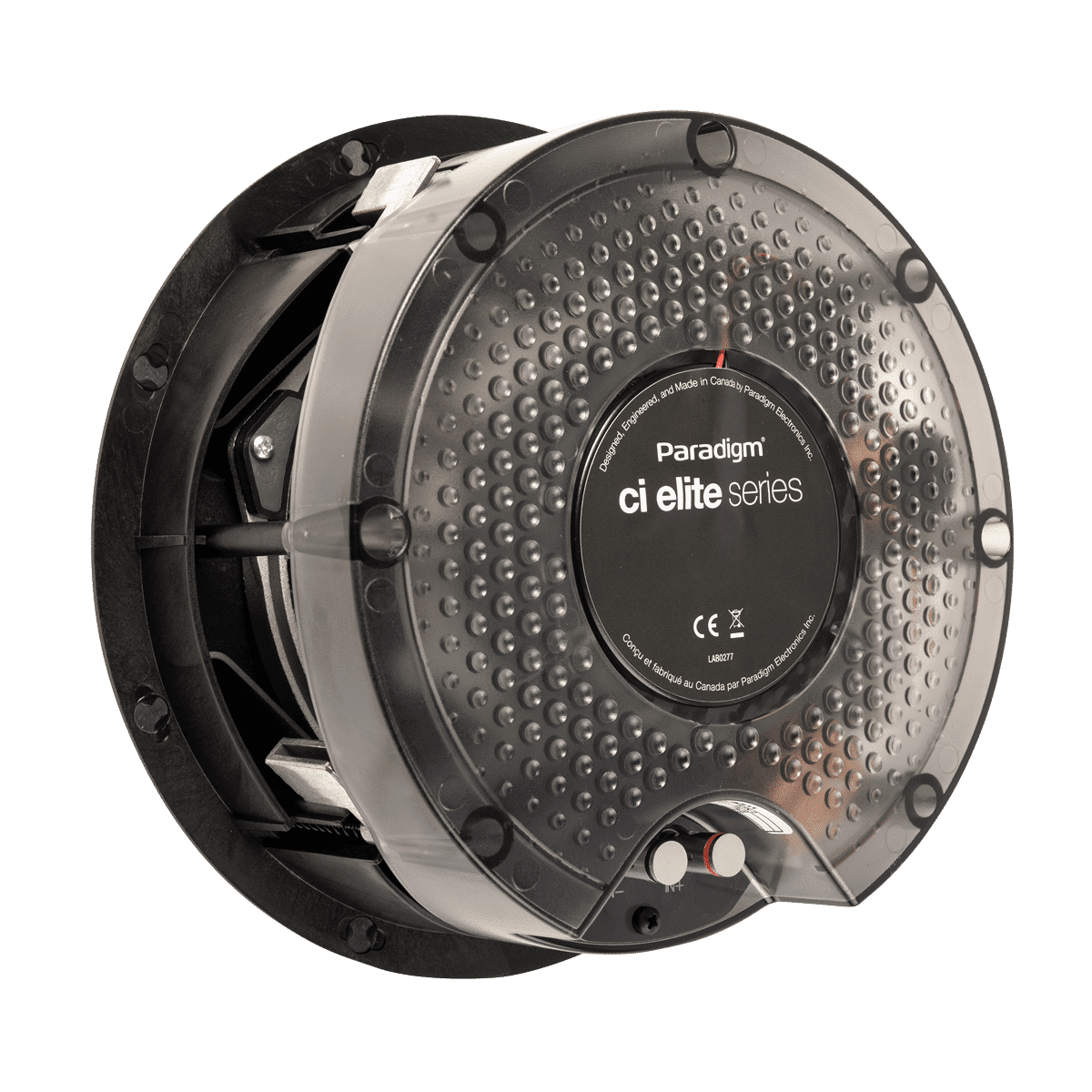

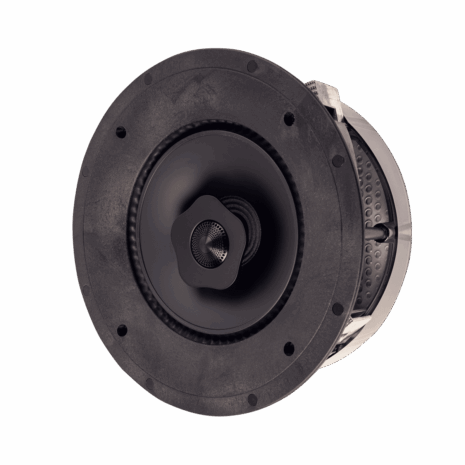

Experience Sonic Brilliance with the Paradigm CI Elite E80-R V2 In-Ceiling Speaker
Elevate your auditory senses with the Paradigm CI Elite E80-R V2 In-Ceiling Speaker, a masterful combination of advanced engineering and refined aesthetics. Designed as a 2-driver, 2-way in-ceiling marvel, this speaker boasts an array of cutting-edge features that deliver unrivaled audio performance. Whether it’s your favorite music, movie soundtracks, or immersive gaming, the CI Elite E80-R V2 ensures an audio experience like no other.
Key Design Features:
- Advanced SHOCK-MOUNT™ System: Enjoy crystal-clear sound with reduced resonance, thanks to the innovative shock-mount technology that isolates the speaker from vibrations.
- Ultra-Rigid CARBON-X™ Baffle: Immerse yourself in pristine sound reproduction, as the ultra-rigid baffle minimizes distortion and ensures precise audio delivery.
Unparalleled Audio Prowess:
- High-Frequency Driver: The 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter, featuring the Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology, ensures crystal-clear highs and accurate soundstage.
- Mid/Bass Frequency Driver: With an 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cone enhanced by overmolded Active Ridge Technology (ART™) surround, this driver delivers impactful midrange and bass. The Advanced Shock-Mount™ System and 1.5” high-temp voice coil guarantee impressive performance.
Technical Specifications:
- Crossover: 3rd-order electro-acoustic at 2.0 kHz
- Frequency Response (On-Axis): ±3 dB from 60 Hz – 22 kHz
- Low-Frequency Extension: 37 Hz
- Sensitivity (Room/Anechoic): 93 dB / 89 dB
- Frequency Response (30° Off-Axis): ±3 dB from 60 Hz – 18 kHz
- Suitable Amplifier Power Range: 15-160 W
- Maximum Input Power: 100 W
- Impedance: Compatible with 8 ohms
- Weight: 6.4 lbs (2.9 kg)

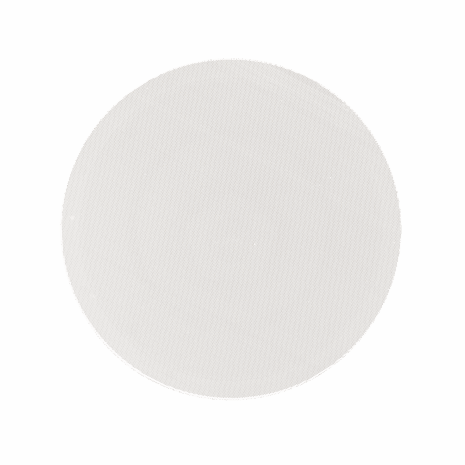

- Finishes: White, paintable grille, black speaker
Seamless Integration and Installation:
- Cut-Out Dimensions: 9-3/16” (23.4cm) diameter
- Minimum Mounting Depth: 3-7/8” (9.8cm) (Depth required between 1/2″ drywall or similar material)
- Dimensions (Including Grille): 10-1/4” (diameter) x 4-1/2” (depth) (26.1cm x 11.4cm)
Embrace the future of home audio with the Paradigm CI Elite E80-R V2 In-Ceiling Speaker. Designed for both sonic excellence and aesthetic elegance, this speaker effortlessly merges into your living space while delivering an audio experience that leaves you spellbound.
Unleash the symphony of sound today. Elevate your space with the Paradigm CI Elite E80-R V2 In-Ceiling Speaker and embark on an auditory journey like never before.
