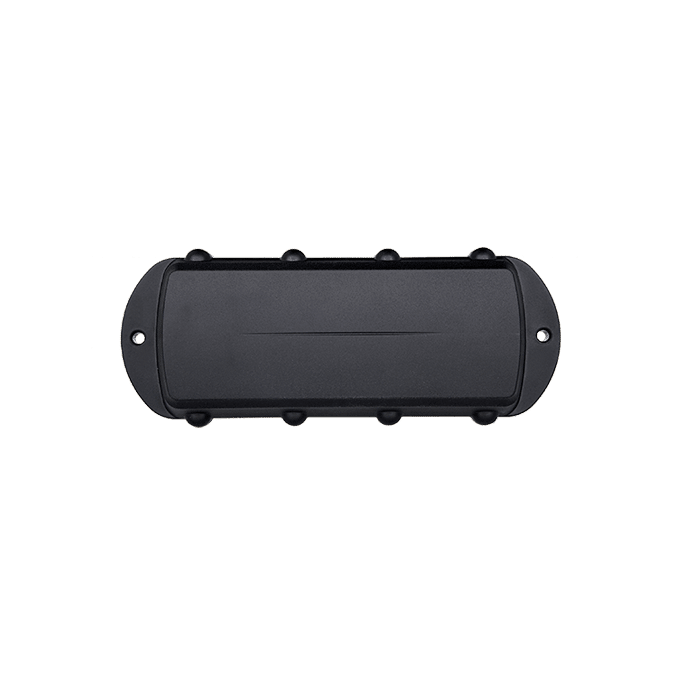

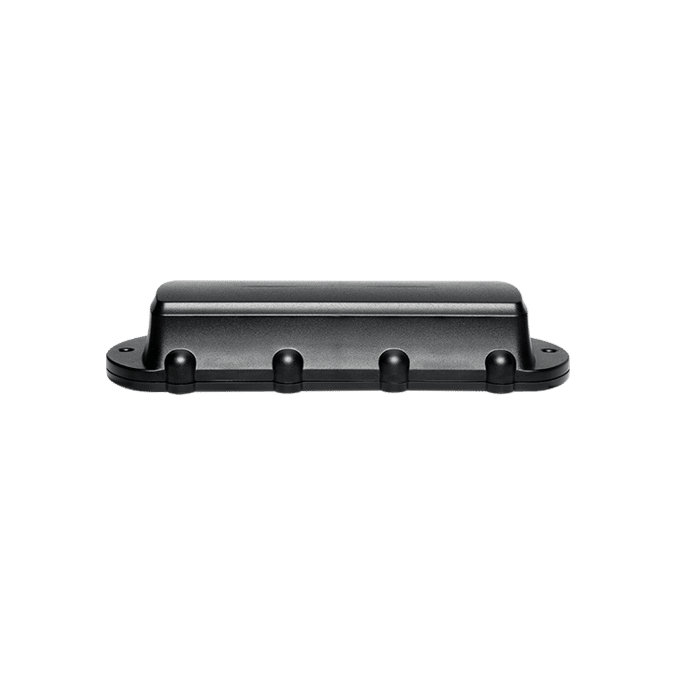

Remora3 Battery-Powered GPS Tracker Long Battery Life + Bluetooth Gateway
Ultra-rugged, long-life battery-powered GPS asset tracking device and Bluetooth® Gateway featuring 10+ years of battery life and tamper detect
- Deploy-once battery life with up to 10+ years movement-based tracking, 2 years at most aggressive (second-by-second) tracking performance
- Bluetooth® 5.2 Gateway for tagged asset management and sensor monitoring
- Powered by off-the-shelf Lithium Thionyl Chloride (LTC) batteries for extreme temperature operation
- Tracks assets when they’re on the move and enters sleep mode when stationary to conserve power
- Battery Meter with ‘Battery Low’ and ‘Battery Critical’ alerts
- Weatherproof and ultra-rugged IP67 Housing
- Magnetic Tamper Detect
- LTE-M / NB-IoT Connectivity
Remora3 Features
High Precision
GPS, GLONASS, Galileo positioning systems are used simultaneously for enhanced accuracy and faster fixes.
Bluetooth® Gateway
Bluetooth® 5.2 Gateway for affordable tagged asset management and sensor monitoring applications.
Rugged & Weatherproof
IP67 rated housing ensures the device can withstand fine dust, high-pressure spray, submersion for 30 minutes in 1m of water, and extreme temperatures.
Off-the-Shelf Batteries
Powered by 2 x D Cell Lithium Thionyl Chloride (LTC) batteries for enhanced temperature operation (-30°C to +60°C).
Battery Life Monitoring
Battery Meter with ‘Battery Low’ and ‘Battery Critical’ alerts.
Wire-Free Installation
Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
LTE-M/NB-IoT Network Roaming
Supports automatic roaming between LTE-M and NB-IoT networks with minimal delay and marginal impact on battery life or performance (roaming SIM required).
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
Periodic or Movement-Based
Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Sleep Mode
Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage.
Impact Detection
Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
Run Hour Monitoring
Capture run hours based on movement to understand and optimize asset utilization.
Preventative Maintenance
Set reminders based on distance travelled and run hours to reduce maintenance and repair costs.
Tip Detection & Rotation Counting
Axis angle reporting, tip detection and rotation counting (planned).
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Advanced Geofencing
Create custom geofences and alerts if an asset enters or leaves specific locations. Geofences can also be downloaded directly to the device for enhanced location-based behaviors.
Manufacturer | Digital Matter |
---|---|
Brand | Digital Matter |
CONNECTIVITY | Bluetooth, Cellular, LTE-M / NB-IoT versions |
Bluetooth® 5.2 Gateway | Bluetooth® 5.2 gateway reports nearby Bluetooth® tags and sensors for affordable tagged asset management and sensor monitoring. |
SIM Size & Access | Internal Micro 4FF SIM |
BATTERIES | *Lithium Thionyl Chloride (LTC), 2 x D Cell (3.7V per cell). Batteries not included. |
Battery Life Monitoring | “Battery Low” and “Battery Critical” alert levels |
Battery Life Estimates | Hourly location updates – 10+ years, Movement-Based location updates – 10+ years, Once Daily location updates – 20+ years |
Chipset | Sony CXD5612 |
Constellation | Concurrent GPS / GLONASS / Galileo |
Tracking Sensitivity | -147dBm cold start / -161dBm hot start |
Location Accuracy | ~1m 2D RMS, GPS, -130dBm |
GNSS Assistance | GNSS almanac data for greater sensitivity and position accuracy |
Low Noise Amplifier | GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail |
Cell Tower Location | Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal |
Safety | Reverse Polarity Protection and Fuse Protection |
Input Voltage | 5-16V DC |
Sleep Current | <10uA* *Average current in lowest power configuration |
Dimensions | 222 x 91 x 41 mm (8.74 x 3.58 x 1.61”) |
Weight | 430g |
Housing | Ultra-Rugged IP67 Housing |
Installation | Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. |
Operating Temperature | -30°C to +60°C |
Cellular Antenna | Internal |
RF Antenna | Internal |
GPS Antenna | Internal |
3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, high G-force events, and more |
Flash Memory | Store weeks of records if device is out of cellular coverage. Storage capacity for over 1 month of continuous 30-second logging. |
Diagnostic LED | Diagnostic LED indicates operation status |
On-Board Speed and Heading | Current speed and heading is reported with each position update |
On-Board Temperature | The device reports internal temperature which provides an indication of ambient temperature but may not always be precise |
Auto-APN | Auto-APN allows the device to analyze the SIM card and select the correct APN details from a list that is pre-loaded in the device’s firmware |
Geofence Alerts | The server can use device location to create geofences and alerts if an asset enters or leaves designated locations |
Impact Detection | Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold |
Geofence Download to Device | Geofences can be downloaded directly to the device from Telematics Guru for enhanced location-based actions and alerts. Maximum of 500 Geofences with up to 100 points per geofence. |
Intelligent Power Management | Early registration abort saves power when out of cellular coverage |
Preventative Maintenance | Set reminders based on distance traveled and run hours to reduce maintenance and repair costs |
Sleep Mode | Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage |
Run Hour Monitoring | Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization |
Periodic or Movement-Based Tracking | Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary. |
Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval |
Tamper Alerts | Magnetic tamper switch provides an instant alert if the device is removed from your asset |
Tip Detection & Rotation Counting | Axis angle reporting, tip detection and rotation counting |
Flexible Configuration | Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application. |
Device Management Platform | Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system |
Configuration App | Manage device firmware updates and parameters via DM-Link provisioning tool. |
INTEGRATION | Cloud-Based Solver, TCP Direct or HTTPS Webhook |
Security | Military-level AES-256 Encryption from device to Device Management Platform to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
Warranty | Two-year manufacturer’s warranty. |
